TEEMI Barcode Scanners

TEEMI TMSL-55CR 1D 2D Bluetooth Barcode Scanner with USB Cradle Data Receiver Charge Station, QR Wireless Automatic Omnidirectional Screen Scanning Driver's License, Digital Coupon, Postal and OCR Code

TEEMI TMSL-55CR 1D 2D Bluetooth Barcode Scanner with USB Cradle Data Receiver Charge Station, QR Wireless Automatic Omnidirectional Screen Scanning Driver's License, Digital Coupon, Postal and OCR Code

$99.99 USD
$99.99 USD
Save $-99.99 Sold out
Size

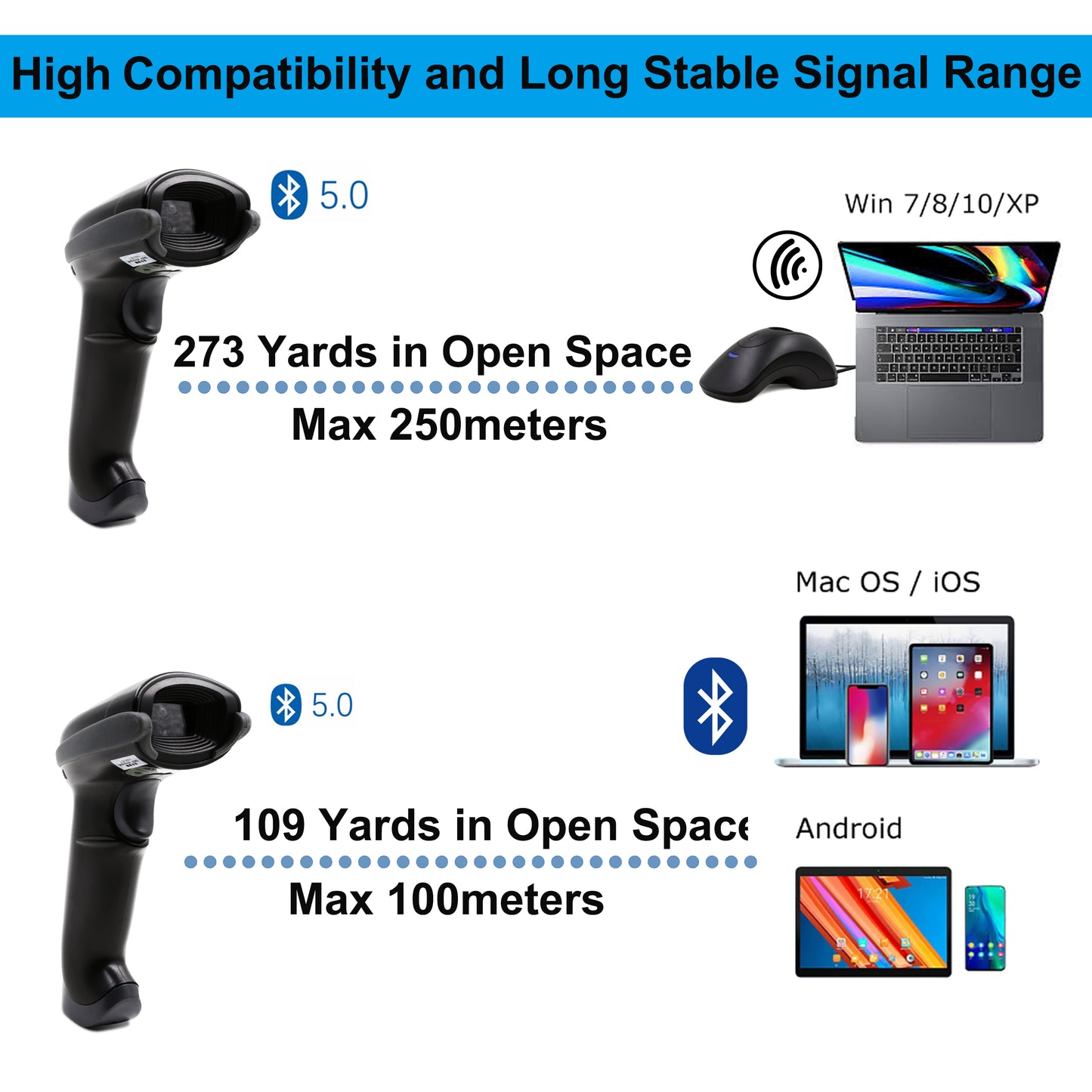

  • Latest Bluetooth 5.0 Technology makes it work with iPhone, ipad, Andriod, Window PC/tablets much more stable, with the cradle, the signal range is up to 250m (820ft). This scanner does not support iOS based POS like Vend, shopkeeper, Square

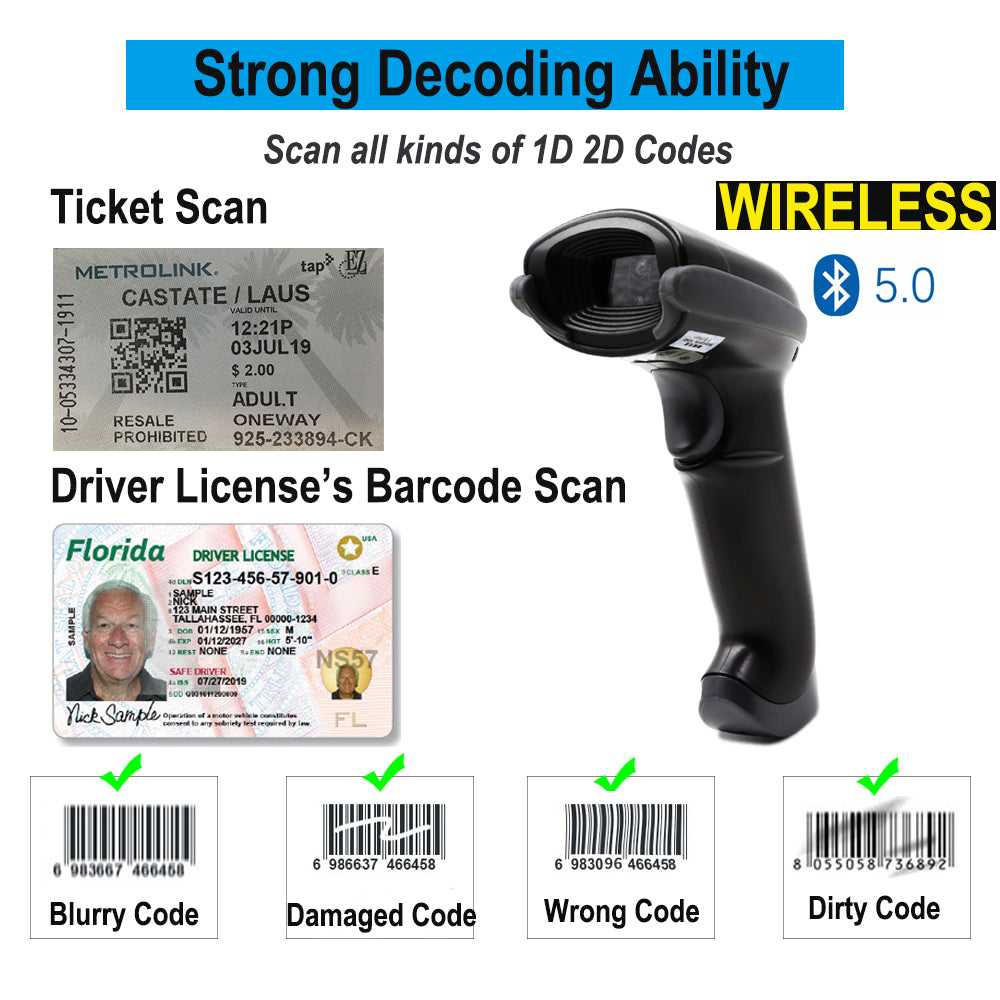

  • High speed, reliable omnidirectional reading of 1D, 2D, Postal or reverse printed codes on screen or paper, able to scan at any direction, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, Intelligent Mail Barcode(IMB) on business card, tickets, driver license, machines, courier service bill
  • Durable and Larger Capacity 2600 mAh rechargeable battery makes the scanner works longer. The USB cradle works as a data receiver and charge station. Whenever scanner sits in cradle, charging automatically starts. It also holds the scanner in handsfree presentation mode.
  • Three Scanning Mode: Trigger Mode, Continuous Scan Mode and Auto-Sensing Mode. With adjustable LED illumination, the scanner can work at night or bright LED condition. With Vibration alert feature, the scanner can work perfectly in quite environment without disturbing you or your customers.
  • Configurable: this scanner is able to scan driver license and output the data into one single line or several lines; replace GS separators with printable symbols, output part of one type barcode data like all the characters or digits before comma
View full details
  • Description
  • User Manual
  • Q&A

Product Description

2d wireless bluetooth barcode scanner with usb cradle

Moving your barcodes beyond paper

This TMSL-55CR scanner uses latest Bluetooth 5.0 technology and can work with Apple iOS, Android, Window PC or tablets. The included USB cradle can work as a data receiver and charging base. This scanner with base can be used widely in almost every application.

NOTE: 1.This scanner is not fuly compatible with square, vend, shopkeep software on iOS devices. Some features may be disabled.

2. The included USB cradle is not compatible with old TMSL-55 manufactured before July 2019.

3. If you want to convert the usb cradle to COM port, you can purchase a serial cable for the USB cradle. Please kindly search B078XBX4VP on amazon.

4. If you want this scanner to read DPM barcodes, please kindly confirm with us before placing the order. Codes, symbols, and text applied directly to a part’s surface (rather than affixed by a label or packaging) are known as Direct Part Marks (DPM). DPM are used widely in industrial part tracking from electronics manufacturing to automotive assembly.

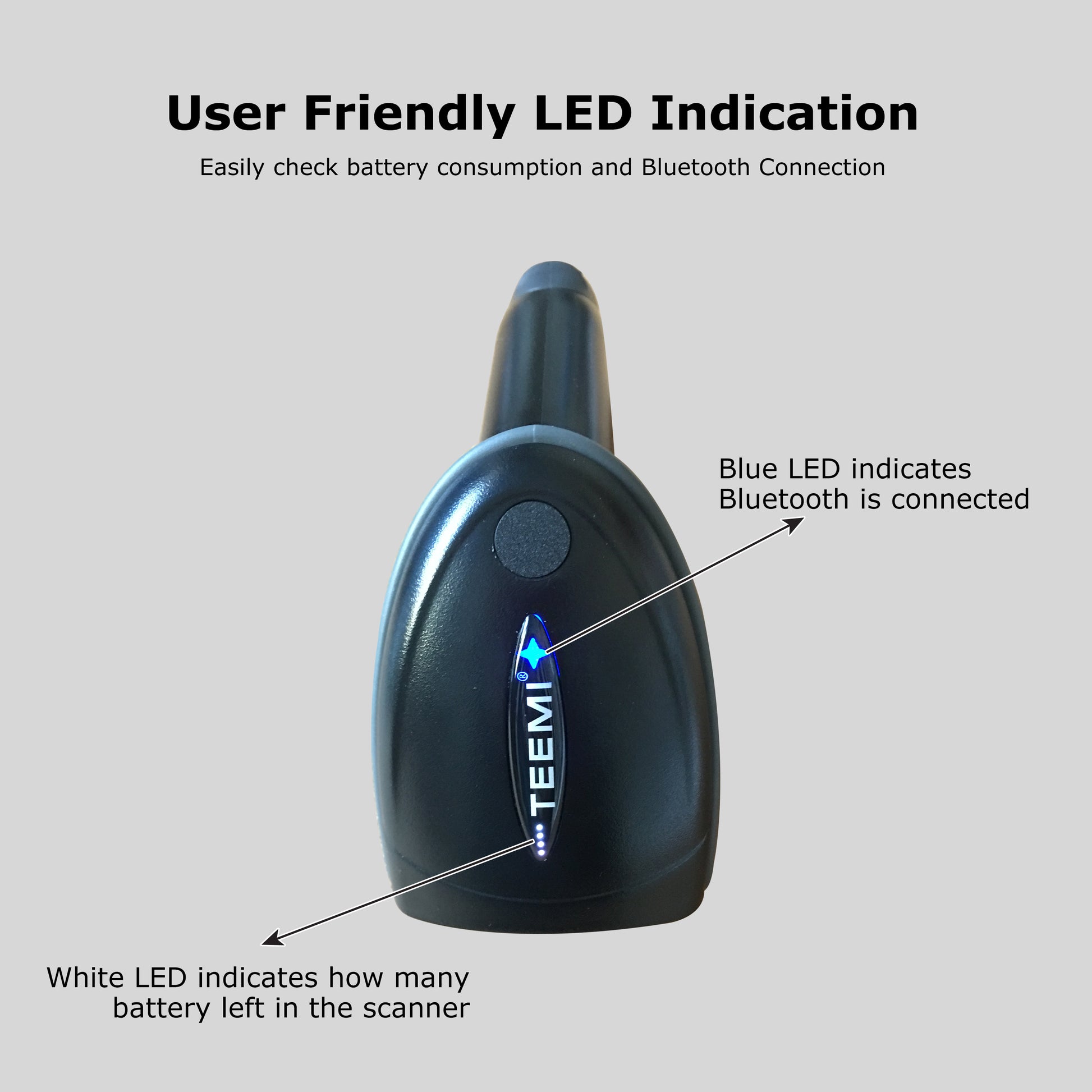

5. This new version TMSL-55 has Vibration function for successful detection and better scanning performance. The White LED indicates the battery consumption of the scanner. The USB cradle has a pager button which can help you to find the paired scanner.

handsfree barcode scanner holder stand charging station data receiver
3 in one usb cradle working as receiver charging base charge station stand supports automatic scan

1D 2D barcodes on paper and screen

Bluetooth connection with the smartphone tablet PC

automatic scanning continuous scan without press the trigger of the scanner

Symbology Decode Capability

The scanner can output the driver license data into one single line by factory default setting. If your software requires the data to be input into several columns, please kindly confirm with the seller first. Thank you.

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

Easily pair with your smart device or the USB cradle

How to pair the scanner with your device



  1. Scan one pairing barcode on the manual
  2. Turn on the blue-tooth of your device and then search our scanner to connect
  3. The scanner will beep when it connects with your device
  4. Open a notepad or your editable software, place the cursor in and then start to scan



How to use the scanner with the USB cradle?

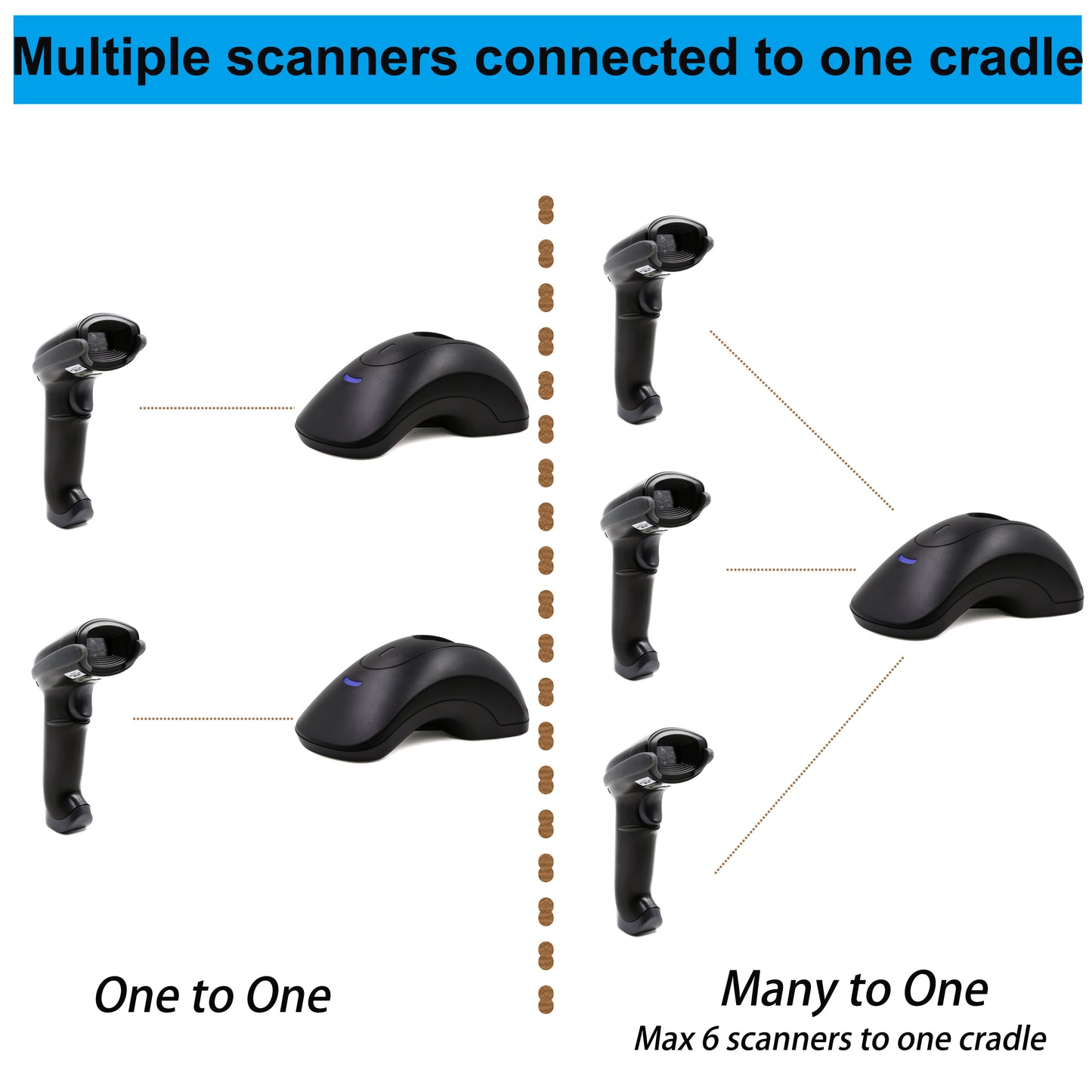

Follow the manual to pair the scanner with the cradle, then plug the scanner into your PC, the scanner will send the data to your PC via cradle

Presentation Mode-without pressing the trigger of the scanner

Presentation Mode uses ambient light and scanner illumination to detect bar codes. When in Presentation Mode, the LEDs remain dim until a bar code is presented to the scanner, then the aimer turns on and the LEDs turn up to read the code.

NOTE:



  • You can adjust the LED illumination if it is bright for you.
  • This barcode imager can scan your barcodes at any direction, no need to orient the barcode in a single direction.



anti shock durable design

rechargeable barcode scanner

aiming dot

Durable Design

With the thick hard rubber, the scanner is much more durable and resist shocks and drops. The scanner will survive even if falls down from 1.5m off the ground. If you are looking for a durablescanner with good battery endurance, this TMSL-55 would be the best choice.

Less Charge and Long Working

With 2500mAh Capacity Battery, it can work 48 hours continuously after full charge. (Test the battery life with a machine, scanning rate one scan per second). If you only do hundreds scans per day, the scanner can work for half months.

The red LED will turn on during charging and turn off after fully charged. The scanner can be fully charged in around 2.5 hours.

When the battery is low, you will hear high short beeps from the scanner.

Reading dot

With this aiming dot, you can make sure the scanner is aimed at the correct barcode on the sheet – this greatly increases the chance of reading the correct one.

With powerful strong LED light, you can use the scanner even in the dark.

3 bluetooth profiles

1d 2d qr pdf417 barcode scanner

pager button

You can select the bluetooth profile mode accroding to your software requirement.



  • Bluetooth SPP(serial port profile):



The scanner can upload the data to your serial software under this mode.



  • Bluetooth GATT(Generic Attribute Profile)



The scanner can upload the data to your serial software under this mode. GATT Service UUID needs to be filled while in connection.



  • Bluetooth HID



This is the default setting.

You can upload the data to your notepad.

Our 2D barcode imager scanner features reading 2D and screen barcodes well.

Some barcode type may be disabled by factory default setting, please kindly enable it before scan. If your barcode is 1D long linear type over 4inches, you can consider our TMCT-10.

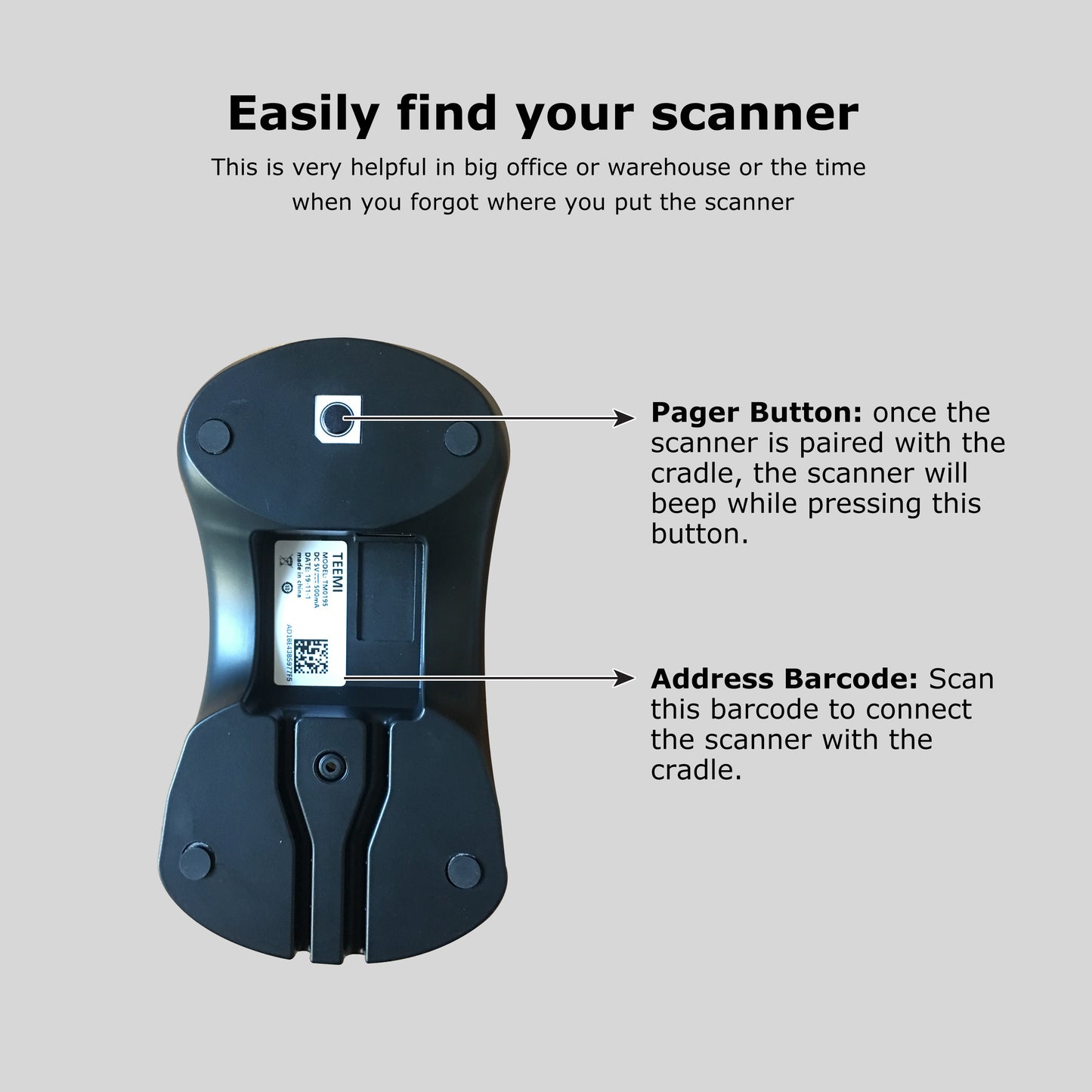

To use this function, please kindly make sure that the scanner is paired with the cralde.

Pressing the pager button on the cradle, you can easily find the scanner.
2D Bluetooth barcode scanner wireless 2D QR barcode scanner wearable TMSL-55CR TMSL-56CR TMSL-57CR Bluetooth barcode scanner replacement battery 2D QR presentation barcode scanner support fast moving barcodes 1d 2d barcode scanner support QR barcodes on paper and screen 1d wireless barcode scanner handheld usb automatic scanner
TMSL-55CR TMSL-54CR Replacement battery TMSL-70 T22N-AU with stand TMCT-10
Connectivity Technology Bluetooth 5.0 Bluetooth 5.0 for TMSL-55CR USB wired USB wired Bluetooth 3.0 + USB wired
Decoding Rate 120 Frame per second 100 Frame per second Rechargeable 120 Frame per second 60 Frame per second 200 times/s
1D or 2D scanner 1D&2D 1D&2D 2600mAh 1D&2D 1D&2D 1D
support paper or screen barcodes Paper & Screen Paper & Screen ---- Paper & Screen Paper & Screen Paper
Scanning Technology 2D CMOS Imager 2D CMOS Imager --- 2D CMOS Imager 2D CMOS Imager Laser
Support Moving barcodes No No --- Yes No No
Transfer distance 328ft (100m) outdoors in Bluetooth Mode, 250m (820ft) outdoors with the USB Cradle 328ft (100m) outdoors in Bluetooth Mode, 250m (820ft) outdoors with the USB Cradle --- 2ft wired 2ft wired Max 196ft
Hands-free mode ✓ --- --- ✓ ✓ ✓

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.

Enable normal OCR codes



Enable Long OCR codes


3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to activate the feature of automatic switching between handheld and handsfree mode.

Please scan this code below to set up.
