TEEMI Handsfree 1D 2D Barcode Scanner, QR Omnidirectional Desktop USB Wired Virtual COM Port Automatic Bar Code Imager, Capture Screen barcodes, TMSL-60 Black
TEEMI Handsfree 1D 2D Barcode Scanner, QR Omnidirectional Desktop USB Wired Virtual COM Port Automatic Bar Code Imager, Capture Screen barcodes, TMSL-60 Black
- AFFORDABLE 1D/2D SCANNER: With a very large target area(65*60mm, 1.95*1.8inch), this TMSL-60 scanner can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays, even damaged, incomplete and fuzzy code
- HANDHELD AND HANDS-FREE MODES: Dual mode functionality saves time, keeps the lines moving, minimizes wait times and eliminates the need to lift heavy items. Reducing the opportunity for injury.
- USB INTERFACE: plug and play, very easy to use. No need to install any software or drivers; works with Windows, Linux and Mac OS systems
- BUILT FOR YOUR BUSINESS: this handfree scanner is built primarily for retail and hospitality businesses everywhere. Placing this reliable tool at your point of sale will ensure quick transactions and keep the lines moving.

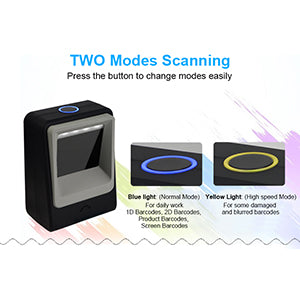

- WITH TRIGGER: Convenient top trigger with LED indication and programmable beeper volume protects productivity in noisy environments, such as theaters, airports and restaurants by providing both visual and audible confirmation of successful scans. You can press the button on top of the scanner platform to switch between Normal scanning mode and 1D fast scanning mode according to your working situation.
Share
- Description
- User Manual
- Q&A
Product Description
TEEMI Hands-free Two dimensional Presentation Scanners - MOVING BEYOND THE PAPER BAR CODE

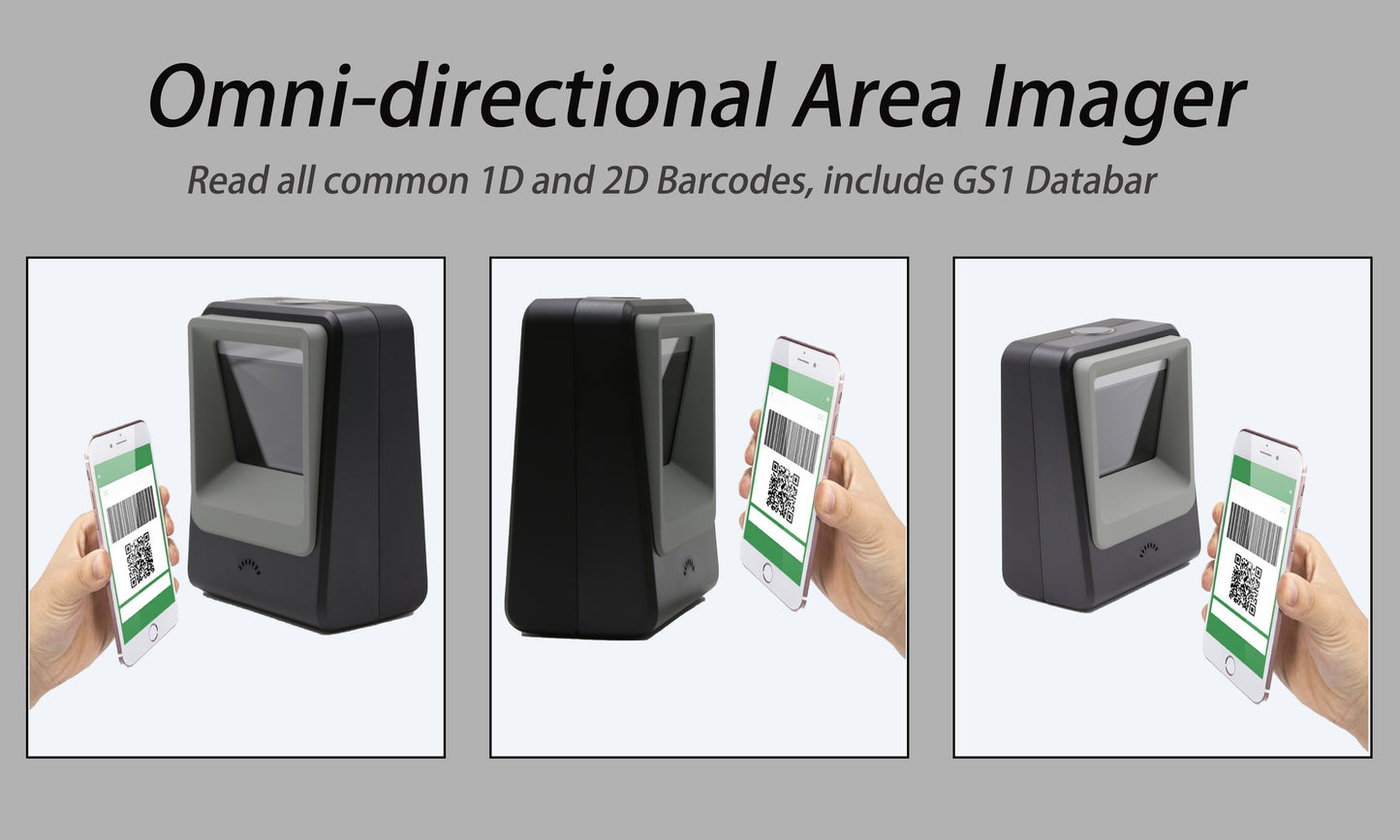

TEEMI TMSL-60 2D QR Presentation Barcode scanner can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays.
How to use the scanner?
Please connect the scanner with your PC via the USB cable, open a blank excel or notepad, place the cursor in, then start to scan. The scanned data will upload to the place where you put the cursor.

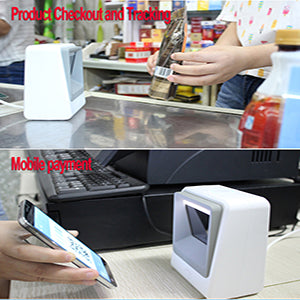

This scanner can be used for Point-of-Sale, Loyalty Applications, Check-Ins, Shipping & Receiving, Product and Component Tracking, Lottery & Gaming etc,.
HANDS-FREE AND AUTOMATIC SCANNER
TEEMI TMSL-60 hands-free scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is limited.
No need to grab the scanner, cashier can hold big goods by two hands.
This scanner has strong decoding ability. This single device can easily and accurately capture all common bar codes (1D, 2D and PDF417) electronic or printed on paper labels or plastic cards.
It seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smartphones by customers.
1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.
|
|
|
---|---|---|
|
With four non-slip rubber dots, the scanner can sit on the table or counter stable and safe. Even it falls down, it still survives from 1.5m drops off the ground. |
|
|
|
|
---|---|---|

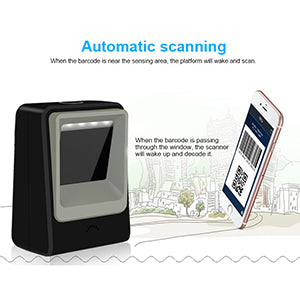

Wake and Sleep AutomaticallyThis scanner is an automatic sensing scanner. When the barcode is passing through the large window of the scanner, the scanner will wake up immediately and decode the barcode. |
Large Scanning BeepIf your working environment is noisy and you are looking for a scanner with louder speaker, this TMSL-60 is perfect for you. You can also Mute the scanner if your working environment is quiet and you don't want to disturb others or adjust the sound as you wish. |
Withstand 10Gs 0.06" double ampAllows Data Formatting: Adding characters, numbers before and after each scan and phrase or take part of the reading result |
1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?
please kindly scan the configuration code below to activate this feature.
2.How to Activate OCR function of TEEMI 2D Scanners?
Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.
Enable normal OCR codes
Enable Long OCR codes
3. How to activate the IMB code for TEEMI 2D Scanners?
Please kindly scan the programming barcode below to activate the IMB code.
4. How to program the scanner auto enter after each scan?
Please scan this code to set up.
5. How to turn off the sound of the scanner?
Please scan the codes below to set up.
