TEEMI TMSL-57CR 1D 2D Bluetooth Barcode Scanner with Intelligent USB Cradle Charge Station Wall Mounted, Auto Activate Omni-Directional Hands-Free Scanning Mode, Wireless Charging Black Color

TEEMI TMSL-57CR 1D 2D Bluetooth Barcode Scanner with Intelligent USB Cradle Charge Station Wall Mounted, Auto Activate Omni-Directional Hands-Free Scanning Mode, Wireless Charging Black Color

$99.99 USD
$99.99 USD
Save $-99.99 Sold out
Color

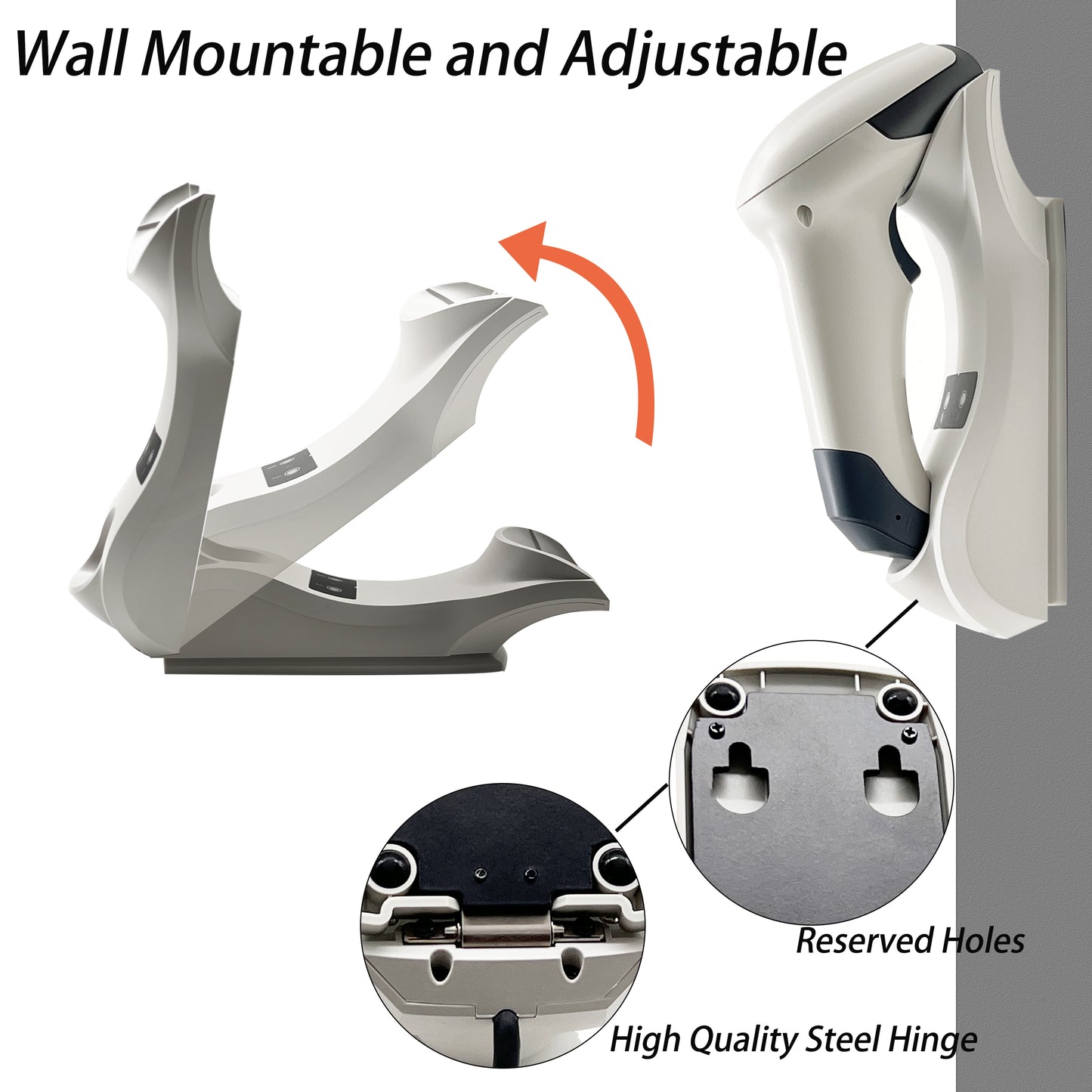

  • Intelligent Wall Mountable USB Cradle: You can program the scanner to be on Presentation-Normal mode when it is in the cradle and be in Trigger mode when it is out of the cradle automatically. The cradle works as a data receiver, charge station and stand. The bottom page button on the cradle will help you to upgrade the internal software and find the paired connected scanner if you forget where you put it.
  • Fast Scanning Ability: 120 frames per second, Improved scanning of curved, wide, poorly printed and damaged barcodes, High speed, omnidirectional reading of 1D, 2D, Postal bar codes and reverse printed bar code on paper or screen, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
  • Long Transfer Range: Bluetooth 5.0 technology, direction bluetooth transfer range can up to 398ft outdoors, transfer range with usb cradle can up to 820ft outdoors
  • Three Scanning Modes: Trigger scanning mode(press the trigger to scan), continuous scanning mode(LED will stay one all the time to scan) and auto-sensing scanning mode(the LED will be activated when the barcode is close to the scanning window.)
  • Inventory Mode with Large Capacity: scan your barcodes around and upload them in batch. With 32M internal memory, the scanner can save up to 20,000 UPC barcodes one time.
View full details
  • Description
  • User Manual
  • Q&A

Product Description

2D Bluetooth barcode scanner with usb cradle
high stable usb cradle page button
2D Bluetooth barcode scanner with intelligent USB cradle

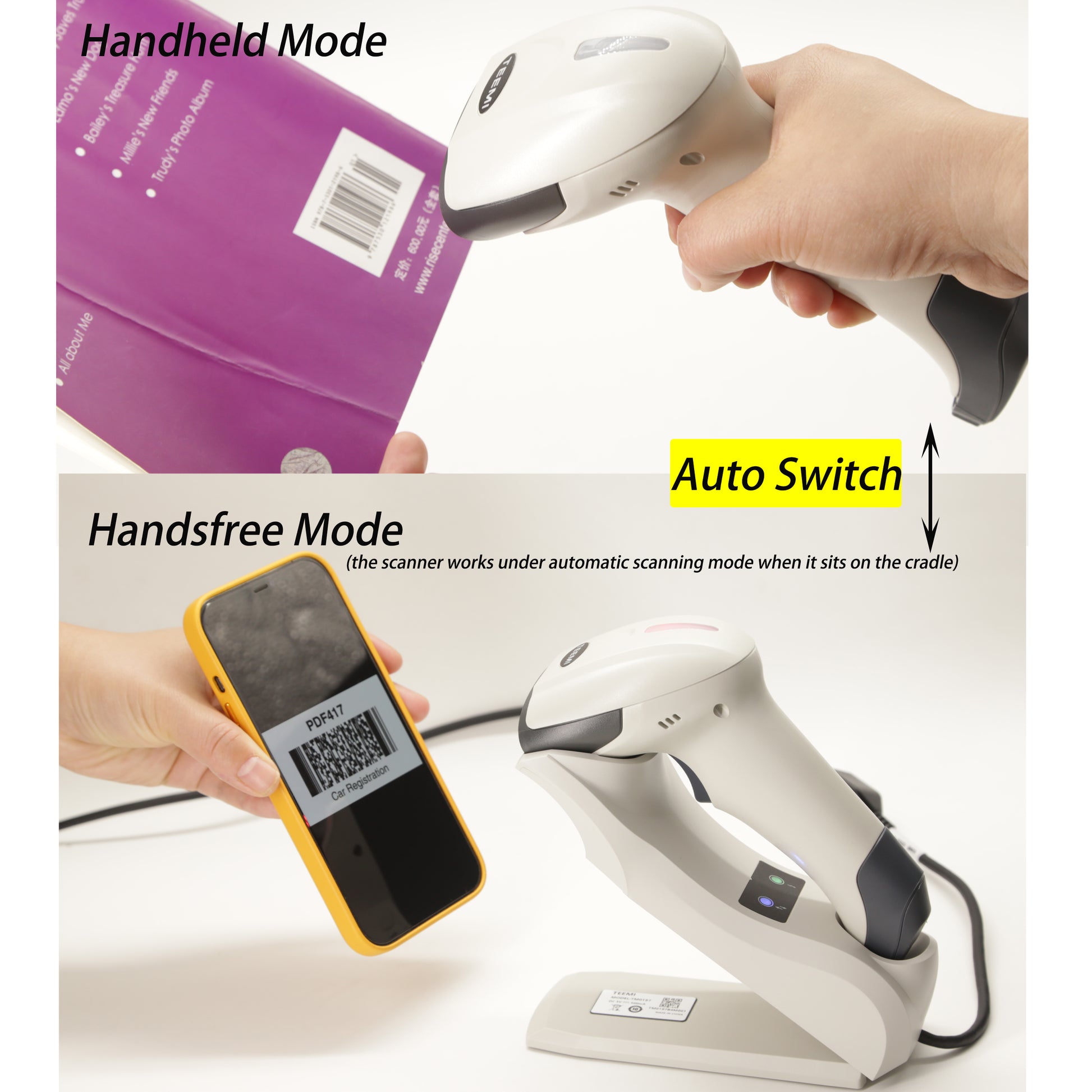

2D Bluetooth Barcode Scanner with Intelligent USB Cradle-Auto Switch between Handsfree and Handheld Mode

The intelligent USB cradle activates handsfree mode automatically when the scanner sits on it. The scanner turns back to the trigger mode when it is removed from the cradle.

With the latest Bluetooth 5.0 technology, the scanner can work with Apple iOS, Android, Window PC and tablets wireless.

NOTE:

1. This scanner does not work for square, vend, shopkeep software on iOS devices.

2. The automatic switch feature between handheld and handsfree mode is inactive by factory default setting.

3. If you want to convert the usb cradle to COM port, you can purchase TEEMI serial cable for the USB cradle or activate virtual com port feature.

4. If you want this scanner to read DPM barcodes, please kindly confirm with us before placing the order. Codes, symbols, and text applied directly to a part’s surface (rather than affixed by a label or packaging) are known as Direct Part Marks (DPM). DPM are used widely in industrial part tracking from electronics manufacturing to automotive assembly.

5. This 2D scanner is not good at decoding 1D long barcode around over 10cm. It reads UPS, UPS tracking bills.

long range bluetooth 5.0 scanner transfer distance wireless scanner with usb receiver cradle

Fast Precise Scan and Intelligent USB Cradle Available

Driver license ID card scan Stacked PDF417

tillable stand for various angle setting hands-free omni-directional scan

wide compatibility mac os iOS android windows barcode scanner

Symbology Decode Capability

This scanner can output the driver license data into one single line by factory default setting. If your software requires the data to be input into several columns, please kindly confirm with the seller first.

Some barcodes like USPS IMB (Intelligent mail barcode) need to be activated before scan.

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39,

Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

Presentation Mode-scan without pressing the trigger

Presentation Mode for in-stand scanning, and a Manual Trigger mode for out-of-stand scanning. Please kindly scan one configuration code to activate this feature.

If the scanner’s trigger is pulled when using a hands free mode, the scanner changes to manual trigger mode.

Two Presentation Modes:



  1. Continuous Scanning Mode: the LED and scanning light is always active when the scanner is on.
  2. Automatic Scanning Mode: when there is a barcode passing through the scanning window, the LED and scanning light will wake up to emit and read the barcode.



Easily pair with your smart device or the USB cradle

How to pair the scanner with your device



  1. Disconnect the USB cradle or receiver
  2. Scan one pairing barcode on the manual
  3. Turn on the blue-tooth of your device and then search our scanner to connect
  4. The scanner will beep when it connects with your device
  5. Open a notepad or your editable software, place the cursor in and then start to scan



How to use the scanner with the USB cradle?

Scan the barcode on the cradle, then plug it into your PC, the scanner will send the data to your PC via the cradle.

NOTE: The scanner can only be paired with one device one time. If you have several workstations to receive data, you can purchase several scanners.
charge via the usb cradle cable charging while scanning

Configurable and Durable

long battery life durable

configurable

shockproof

Rechargeable and Replaceable Lithium ion 2600mAh battery

With 2600mAh Capacity Battery, it can work 12 hours continuously after full charge. (Test the battery life with a machine, scanning rate one scan per second). If you only do hundreds scans per day, the scanner can work for half month.

To charge the device, place it directly on the cradle or connect to any active USB port. The red LED will turn on during charging. The scanner can be fully charged in around 5 to 6 hours.

When the battery is low, you will hear three high beeps from the scanner.

Over 400 configuration options



  • Allow to add custom prefixes/ suffixes, delete characters.
  • Add keyboard keys/ combinations (terminator TAB, CR, F1 to F12 etc.) to the scanning operation.
  • Enable or disable the barcode type as you want.
  • Turn on/off the beep
  • Phrase the scanned data



It is a BLE base device, it supports GATT(Generic Attribute Profile) mode and Second further development. With device UUID and service ID, your app can access the scanned data very easily.

Durable Design

The scanner will survive even if falls down from 5ft off the ground. If you are looking for a durable scanner with good battery endurance, this TMSL-57 would be a good choice.
