TEEMI Barcode Scanners

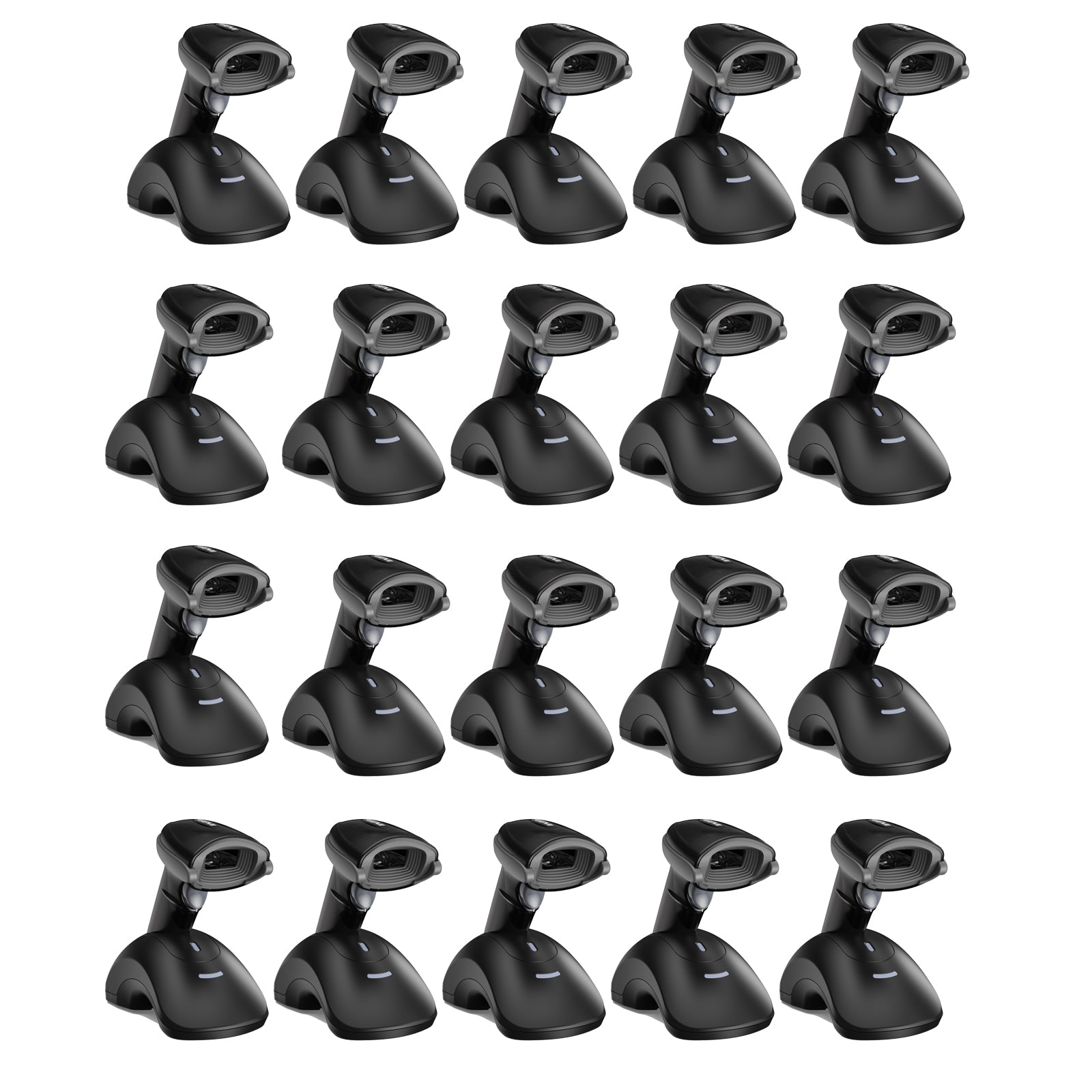

Case of 20 Packs, TEEMI TMSL-53CR 2D Bluetooth Barcode Scanner with USB Cradle, QR PDF417 Datamatrix Handsfree Automatic Screen Scanning with Long-Lasting Replaceable Rechargeable Battery…

Case of 20 Packs, TEEMI TMSL-53CR 2D Bluetooth Barcode Scanner with USB Cradle, QR PDF417 Datamatrix Handsfree Automatic Screen Scanning with Long-Lasting Replaceable Rechargeable Battery…

Regular price $2,099.00 USD
Regular price Sale price $2,099.00 USD
Save $-2,099 Sold out

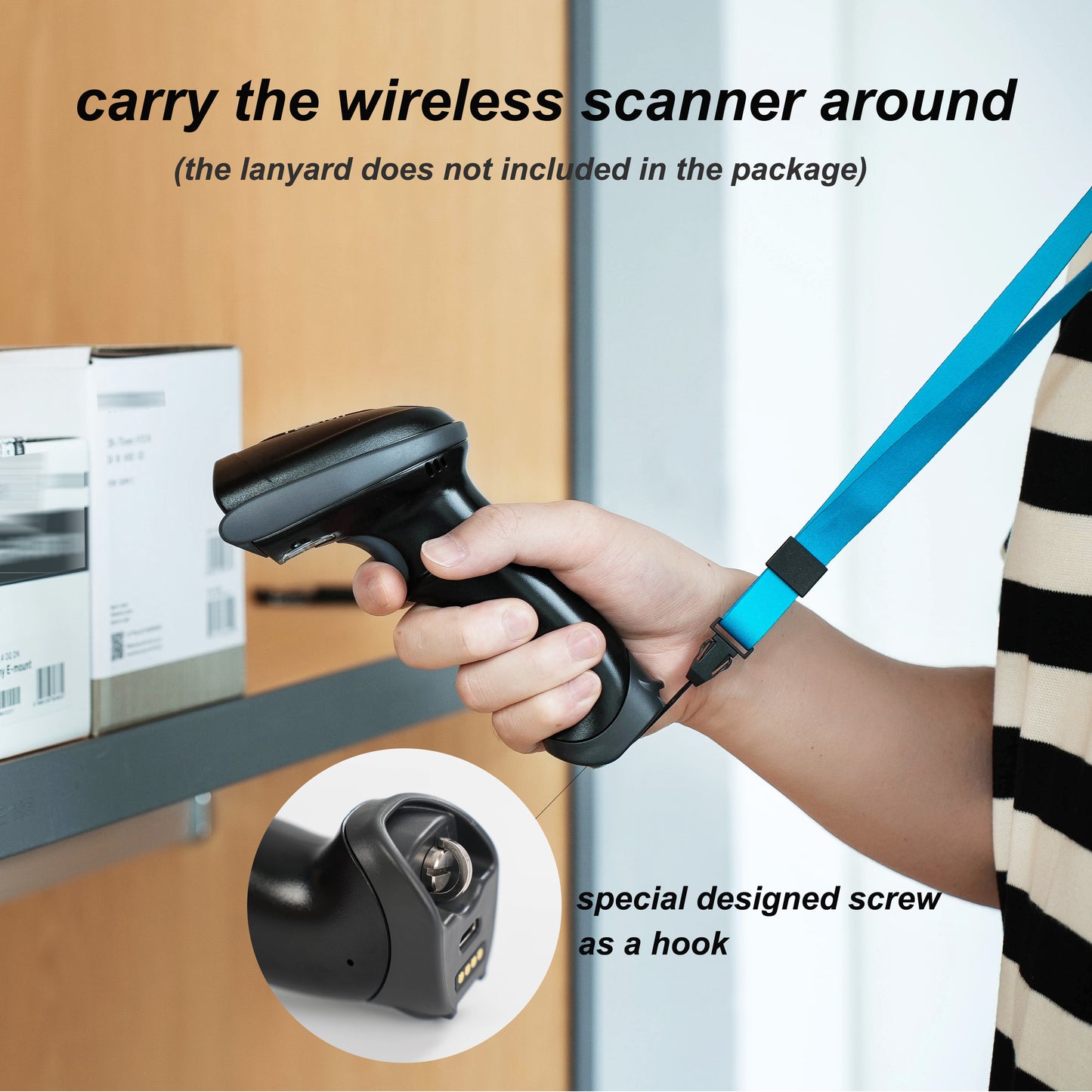

  • Tool-free Removable Battery: Simply swap batteries to run back to back shifts; keep spare batteries on hand with flexible charging options. You can wear the scanner on your neck with the little hook on the screw.
  • High speed, omnidirectional reading of 1D, 2D, Postal bar codes and reverse printed bar code from paper surface or mobile display, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, Intelligent Mail Barcode(IMB) on business card, tickets, driver license, machines, courier service bill
  • Latest new Bluetooth 5.0 scanner and work with iPhone, ipad, Mac OS, Andriod, Window PC and tablets(NOT FOR Vend, shopkeeper, Square). The cradle works as a charging base and data receiver. It is ideal for those old PC or POS without bluetooth feature. With the cradle, the signal range is up to 250m (820ft).
  • Special designed 2500 mAh rechargeable battery, ultra-long battery life, the scanner can work at least 12 hours continuously without stop after full charge. You can replace the scanner in one second when it is out of charge. No worries about the battery when you have a lot of scanning work.
  • Three Scanning Mode and Two Upload Mode: Trigger Mode, Continuous Scan Mode and Auto-Sensing Mode; instantly upload or batch upload. The scanner can work under handsfree scanning mode in the cradle while charging, no need to press the trigger to scan
View full details
  • Description
  • User Manual
  • Q&A

Replace the scanner's battery easily

handsfree 1d 2d bluetooth barcode scanner with USB Cradle wireless scanning

This TMSL-53 CR scanner uses latest Bluetooth 5.0 technology and can work with Apple iOS, Android, Window PC or tablets. The included USB cradle can work as a data receiver and charging base. This scanner with base can be used widely in almost every application.This scanner supports Quickbooks , Word, Excel, Novell or similar POS/accounting software.

NOTE: 1.This scanner is not fuly compatible with Samsung Galaxy Tab A 8.0 (2017 model), square, vend, shopkeep software on iOS devices. Some features may be disabled.

2. If you want this scanner to read DPM barcodes, please kindly confirm with us before placing the order. Codes, symbols, and text applied directly to a part’s surface (rather than affixed by a label or packaging) are known as Direct Part Marks (DPM). DPM are used widely in industrial part tracking from electronics manufacturing to automotive assembly.

3. It has Vibration function for successful detection and better scanning performance. The White LED indicates the battery consumption of the scanner. The USB cradle has a pager button which can help you to find the paired scanner.

4. The built-in battery can be easily replaceable and removeable.

3-in-one usb cradle handsfree stand USB receiver charge station base

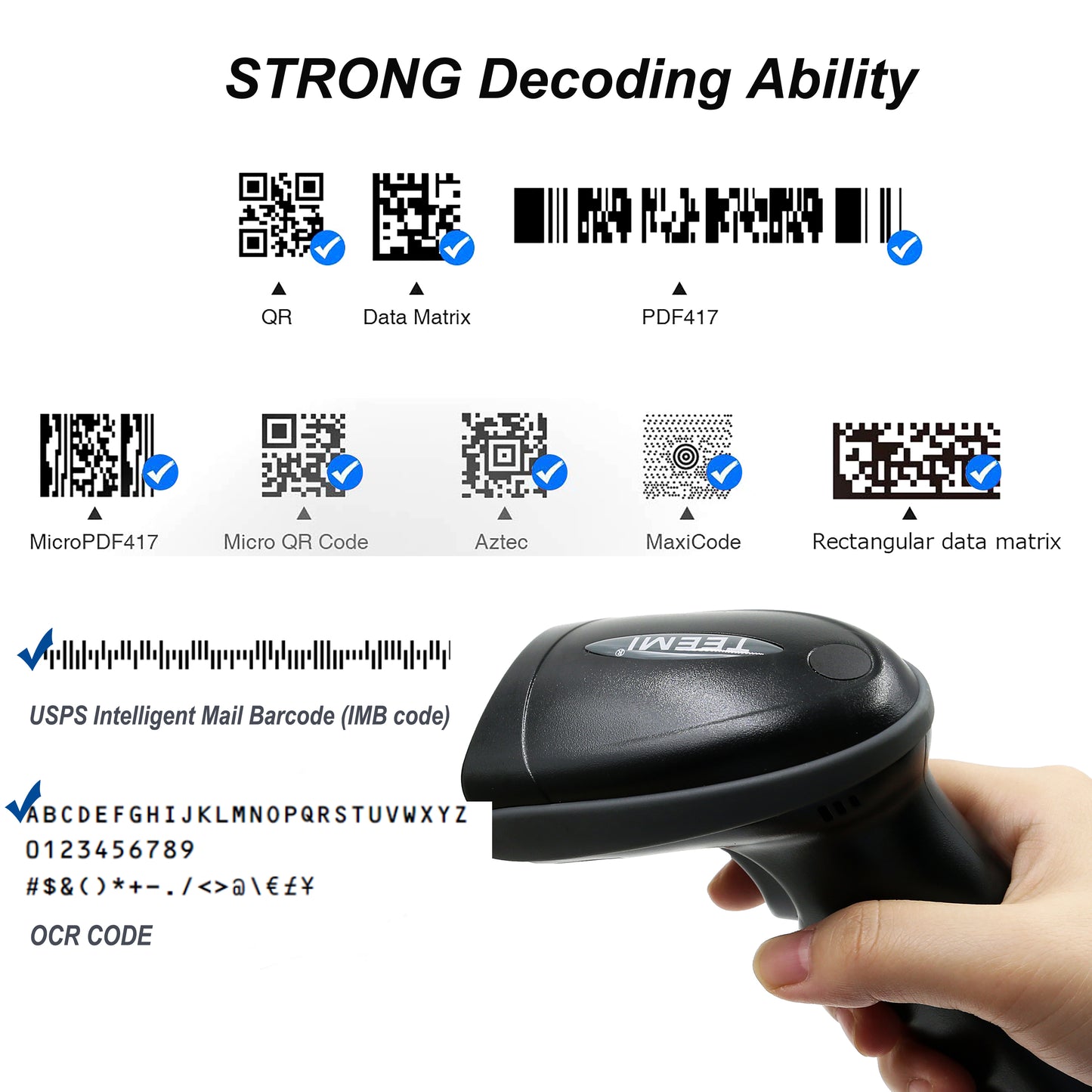

Strong Decoding Ability and Durable

Support Some Special Codes

bluetooth wireless barcode scanner

tool free to replace the barcode scanner battery

Support some special codes

Support 1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

Support 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

Easily pair with your smart device or the USB cradle

How to pair the scanner with your device



  1. Scan one pairing barcode on the manual
  2. Turn on the bluetooth of your device and then search our scanner to connect
  3. The scanner will beep when it connects with your device
  4. Open a notepad or your editable software, place the cursor in and then start to scan

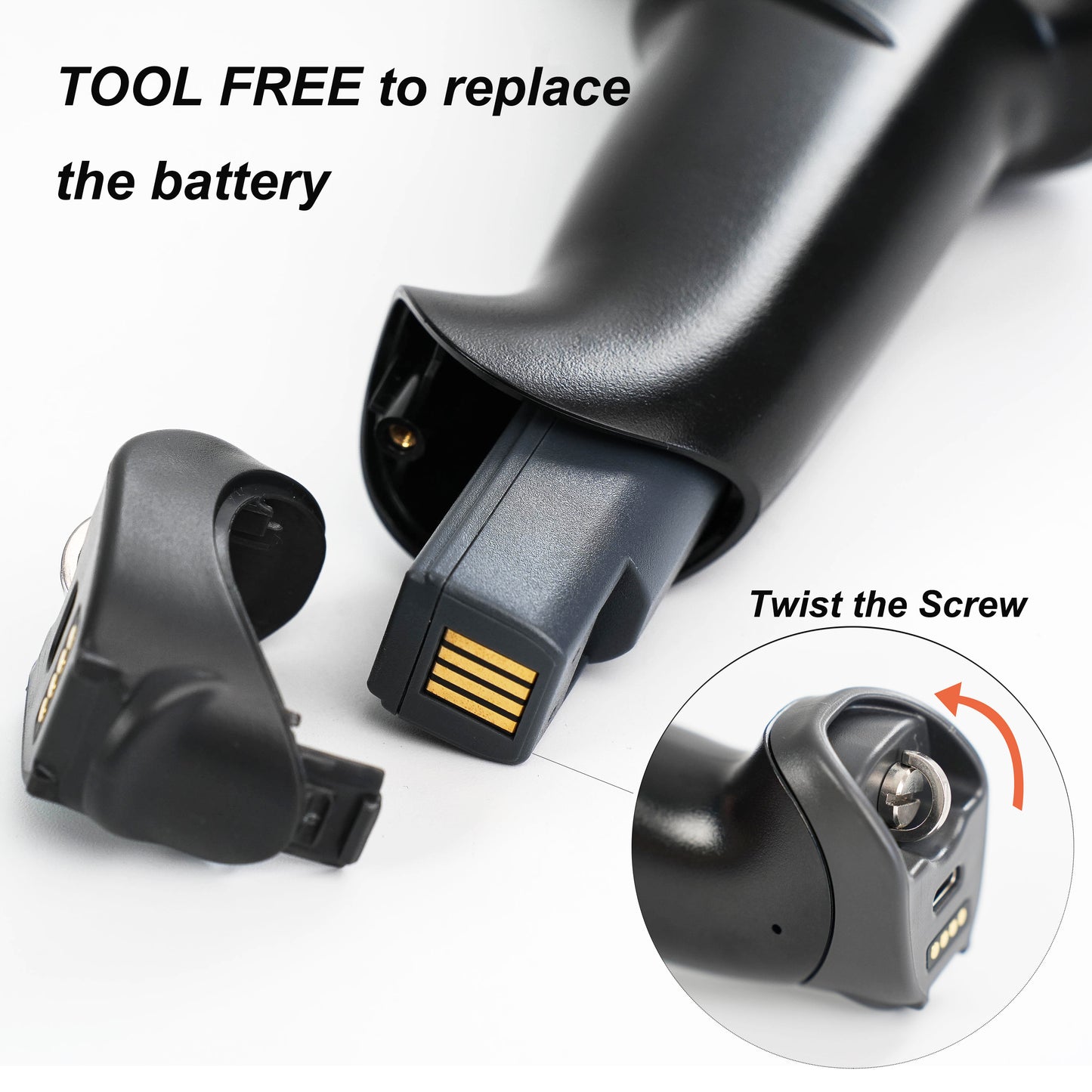

Tool free to replace the battery

Just twist the hook and take out the battery, you can easily replace the battery without using a screwdriver.

bluetooth profiles hid spp GATT barcode scanner

longer transfer range

large capacity battery

3 Bluetooth Profiles

You can select the bluetooth profile mode accroding to your software requirement. Default setting is HID mode, the data is uploaded to the notepad.

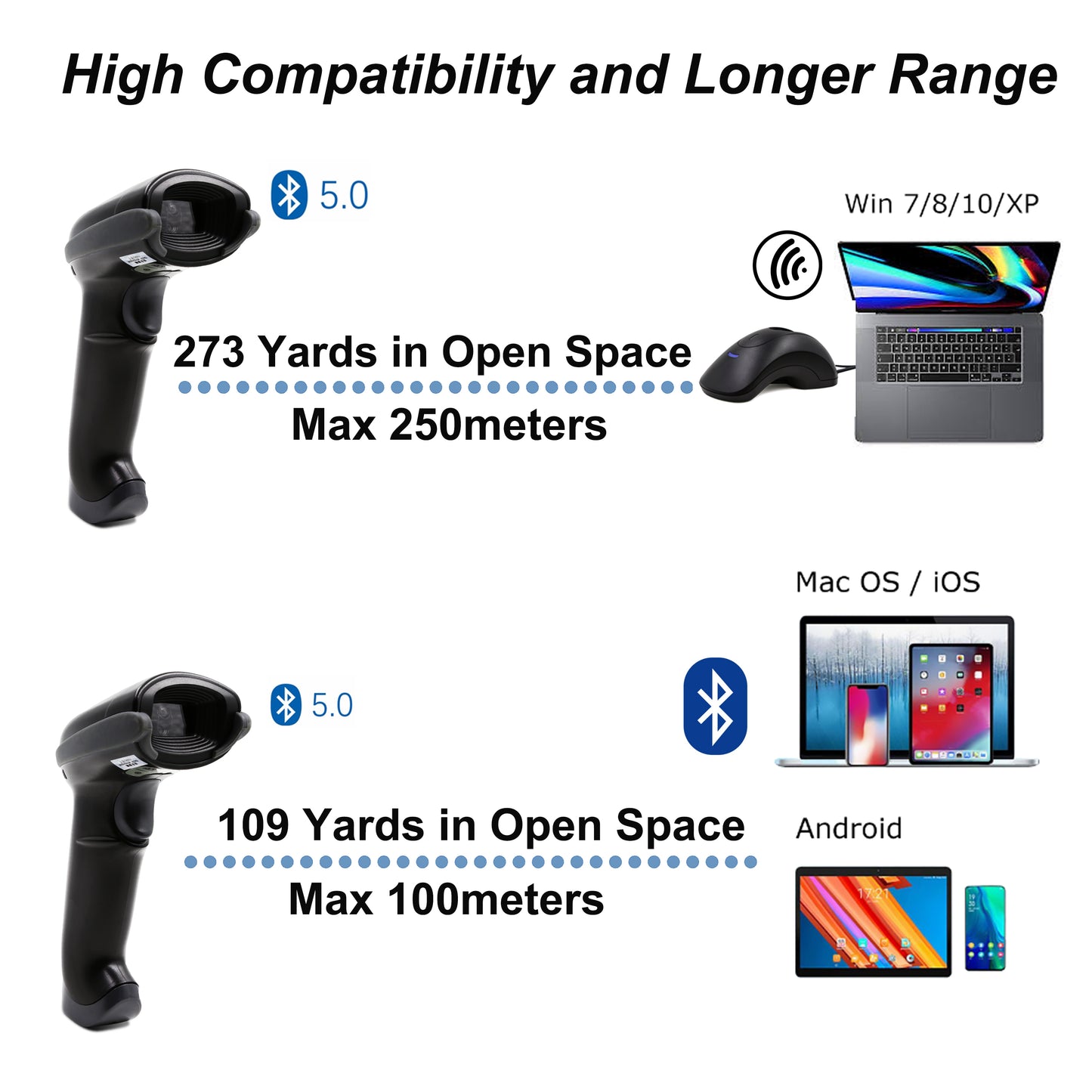

Longer data transfer range

It can work with Apple iOS, Android, Window PC or tablets. With the USB cradle, the signal range can up to 250 meters maximum in open space.

Rechargeable and Replaceable Battery

Built-in 2600mAh Rechargeable Battery, it can work 24 hours continuously after full charge. (one scan per second).

battery bluetooth indicator

usb cradle

handheld scanning

Battery and Bluetooth Indicator

Blue Solid LED indicates that the scanner is connected via bluetooth.

Four white LEDs indicates that the battery is full.

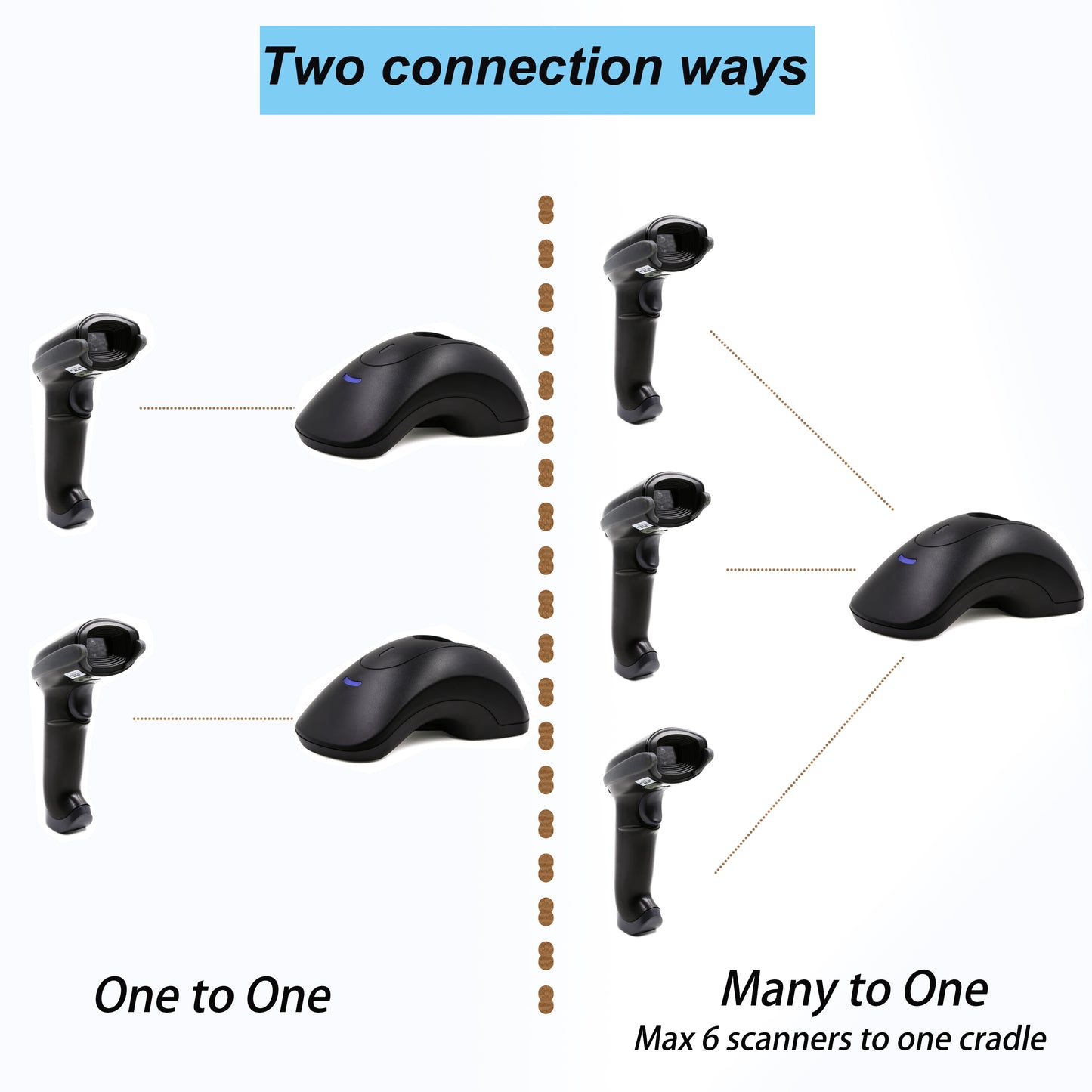

Versatile USB Cradle

How to use the scanner with the USB cradle?

Scan the address barcode to connect the scanner to the USB Cradle.

The scanner will beep if the page button is pressed, this is very helpful to locate the connected scanner in a large warehouse.

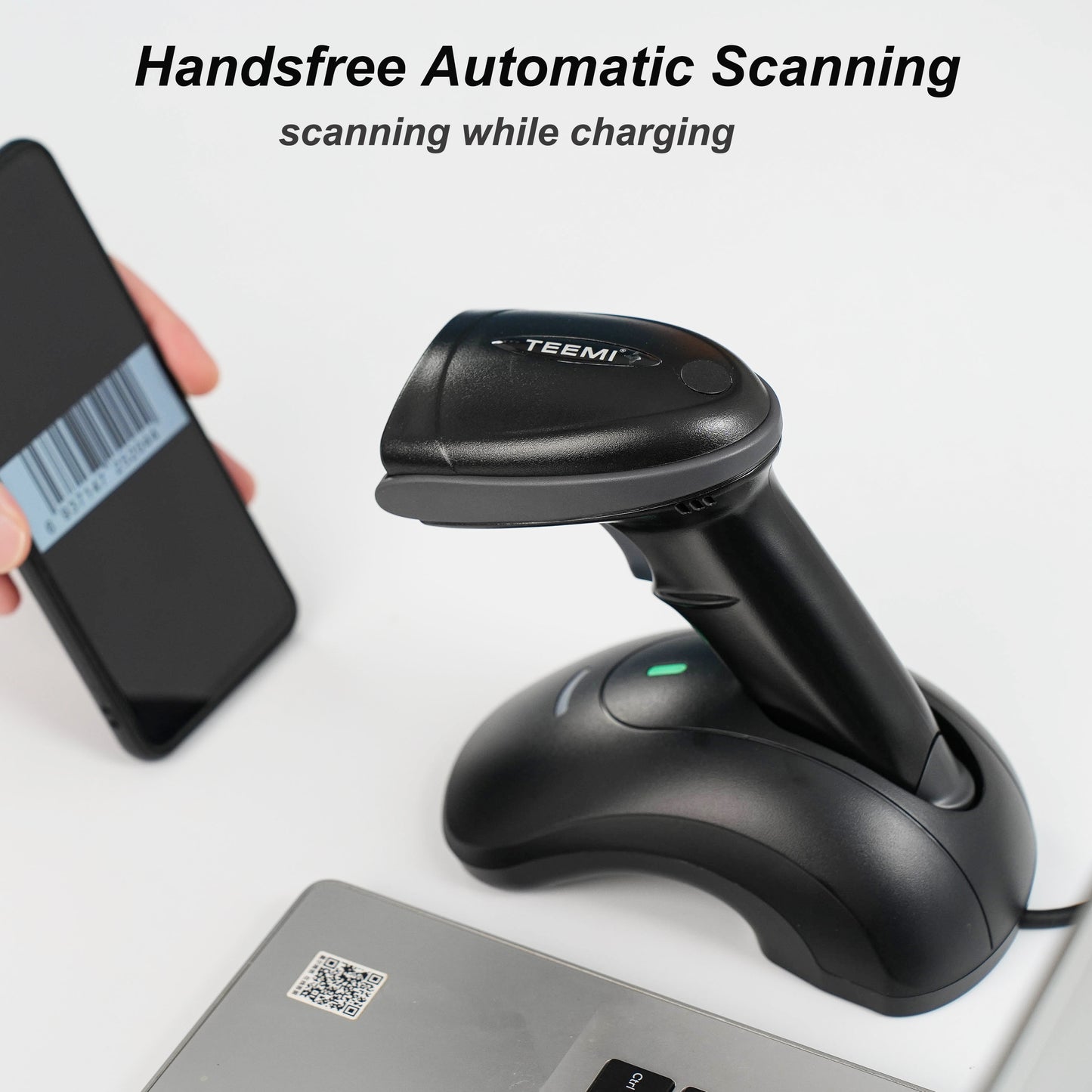

Three scanning Mode

Automatic scanning/Trigger scanning/Continuous scanning mode

Under automatic scanning mode, the scanner will sense the barcode and scan automatically without pressing the trigger.

usb-c fast charging

wearable

drop resistant

USER MANUAL

PROGRAMMING FILE

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.




3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to check the percentage of battery left in your scanner?

Please scan this code to check.
