TEEMI Barcode Scanners

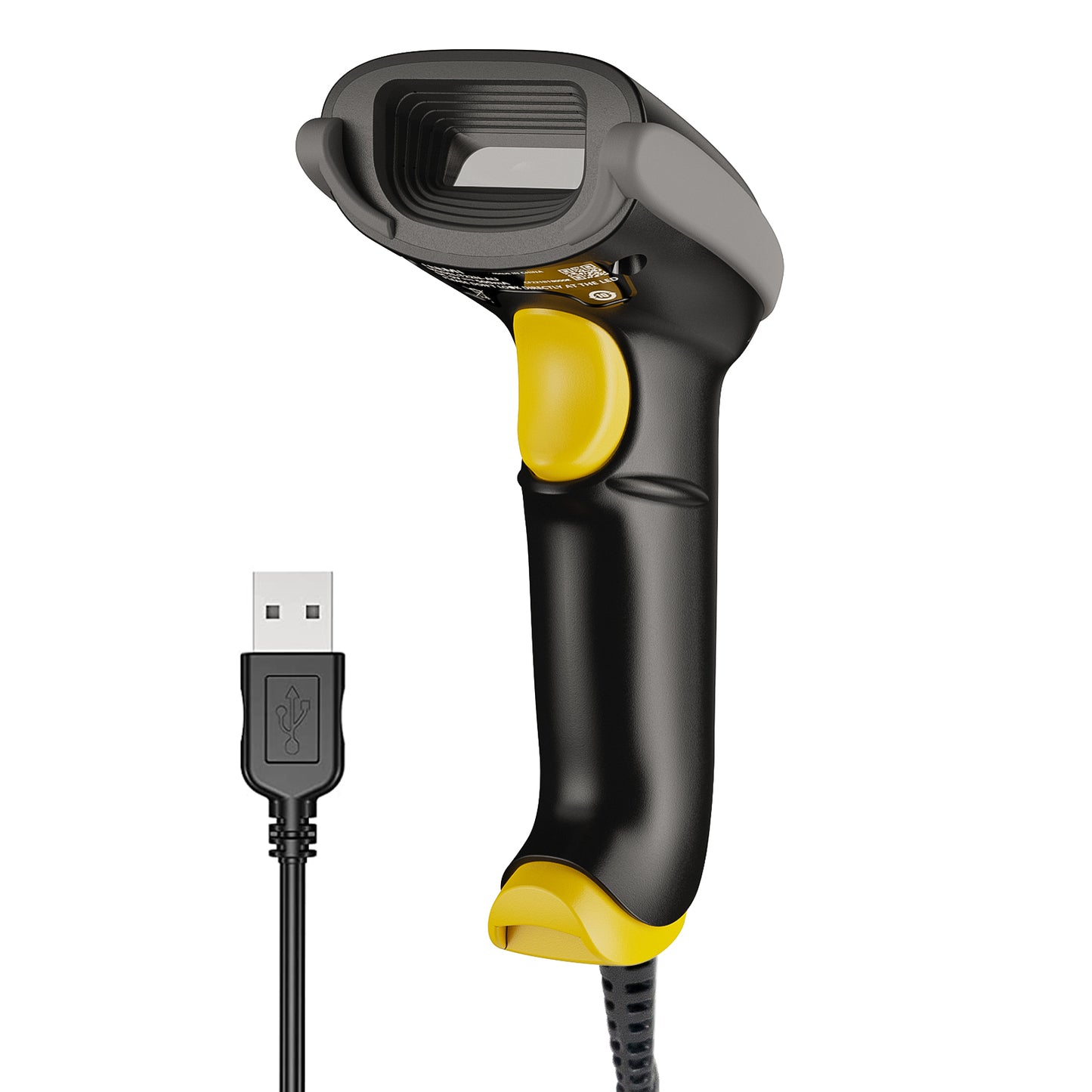

TEEMI T22N-AU 2D Barcode Scanner USB Wired Handheld Automatic QR Data Matrix PDF417 bar Codes Imager for Mobile Payment Computer Screen Scan (No Stand)

TEEMI T22N-AU 2D Barcode Scanner USB Wired Handheld Automatic QR Data Matrix PDF417 bar Codes Imager for Mobile Payment Computer Screen Scan (No Stand)

Regular price $39.99 USD
Regular price $49.99 USD Sale price $39.99 USD
Save $10 Sold out
  • INTELLIGENT SCANNER ONLY: With the special designed Chip, the scanner will automatically switch to Hands-free Presentation mode when it is in the intellistand and be in Trigger mode when it is out of the intellistand.
  • STONG DECODING ABILITY: High speed, omnidirectional reading of 1D, 2D, Postal bar codes and reverse printed bar code from paper surface or mobile display, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, Intelligent Mail Barcode(IMB) on business card, tickets, driver license, machines, courier service bill
  • THREE SCANNING MODE AND PLUG-AND-PLAY: Trigger Mode, Continuous Scan Mode and Auto-Sensing Mode. The universal cable connects to any computing environment, practically eliminating setup and training time.
  • ADVANCED DATA FORMATTING: you can insert or remove characters at certain points in one barcode symbology data as it is scanned. You can program one symbology only, while other symbologies remain no change.
  • FAST AND BUILT TO LAST: It is designed for continuous usage all day, which significantly reduces downtime and repair costs. It provides accurate, first-time scanning. And since it is always ready for the next scan, T22N-AU can shorten check-out lines, improve customer service and increase productivity.
View full details
  • Description
  • User Manual
  • Q&A

Product Description

Scan your 1D and 2D barcodes on paper and monitor screen

2D USB wired bar code reader area imager scan 1d 2d barcodes on paper and screen

The stand is not included in the package. If you need the scanner with the stand bundle, please kindly search B07BFTGW29 on amazon.

Features of this T22N-AU:

-The scanner will be on Presentation mode when it is in the stand and be in Trigger mode when it is out of the stand

-Our T22N-AU supports Datamatrix perfectly by default, no need to do any setting. It supports rectangle Datamatrix and IMB barcodes (Intelligent Mail Barcode) and data formatting function

-Our T22N-AU supports Mac and Android tablet with USB port perfectly, no software required, Plug and play, very easy to use.

-You can set Automatic scanning mode, scan your inventory barcodes without pressing the trigger of the scanner

-This scanner supports reverse 1D or 2D barcodes, driver license barcode.


-Scan pattern: 2D area image (640x48 pixel array)

-Scan angle: Horizontal 55°, vertical37.5°

-Scan Technology: CMOS

-Dimensions(LxWxH): 4.2x2.7x7.1inch

-Weight: 0.29lb

handsfree intellistand symbol ls2208 2d barcode scanner

Strong Decoding Ability, Read Barcodes on Paper and Screen

PDF417 driver license UPC EAN ISBN Scan

Which barcode scanner should I choose? Laser scanner or 2D imager scanner?

If your barcodes is 2D and you need to scan barcodes on screen, you should choose 2D imager scanner.

Then What is 2D barcodes?

Two-dimensional (2D) barcodes look like squares or rectangles that contain many small, individual dots.

One-dimensional, or 1D barcodes, systematically represent data by varying the widths and spacings of parallel lines, and may be referred to as linear or one-dimensional.

Our T22N-AU supports following barcode types:

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.


1. T22N-AU outputs the driver license data into one single line by default setting. Some software requires the data into several columns, please kindly confirm with the seller first.

2. Code93, MSI, Micro PDF 417, Maxi code, Aztec, Hanxin, Telepen and Industrial 2 of 5 are disabled by factory default setting. You need to activate them if you need to scan those barcode types.

3. If you need to read long linear barcode(over 10cm long), please kindly choose a laser scanner.

omni directional automatic scan hands free design continuous scanning

durable industrial scanner

1d 2d qr pdf417 barcode scanner

Hands-free and Omnidirectional Scan


  • Handsfree: Put the scanner on the stand, the scanner will automatically switch to presentation mode; once you grab it out of the stand, it will switch back to normal trigger mode.
  • Omni-directional Scan: Scan your barcodes at any direction, no need to orient the scanner in one single direction.


Sturdy Durable Design

The scanner withstands repeated 6ft. (1.8m) drops to concrete floor. It is very durable.

The USB cable survives from thousands bending test.

Move your barcode beyond 1D code

Our T22N-AU 2D barcode imager scanner features reading 2D and screen barcodes well.

Some barcode type may be disabled by factory default setting, please kindly enable it before scan.

usb wired plug and play no drivers needed for windows 7 8 10 Mac OS linux

This scanner is USB wired, plug and play, open an excel or notepad and place the cursor in, then start to scan.

Note: You can also set the scanner to work as virtual com port on Windows and Linux if you need to upload the data to the serial software.

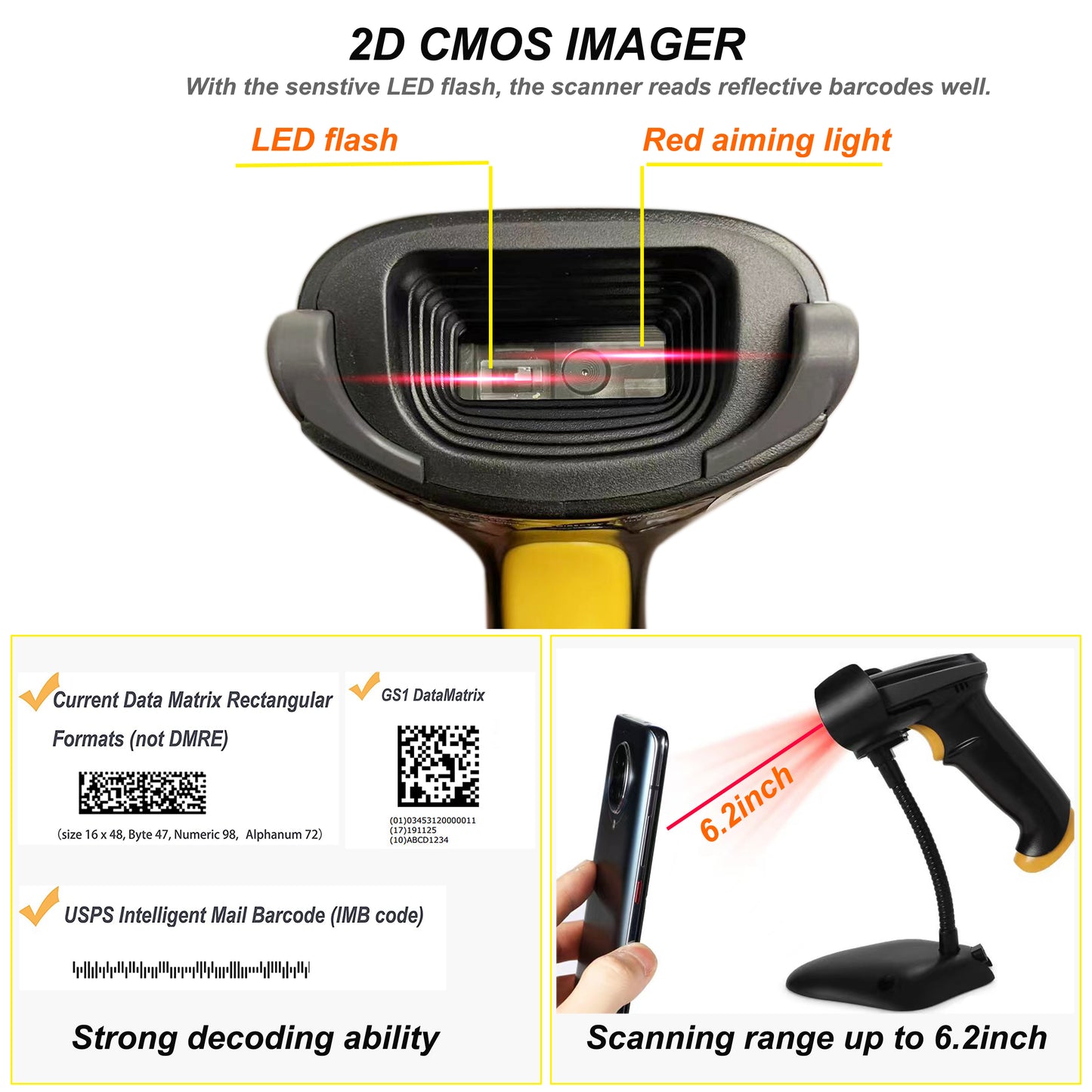

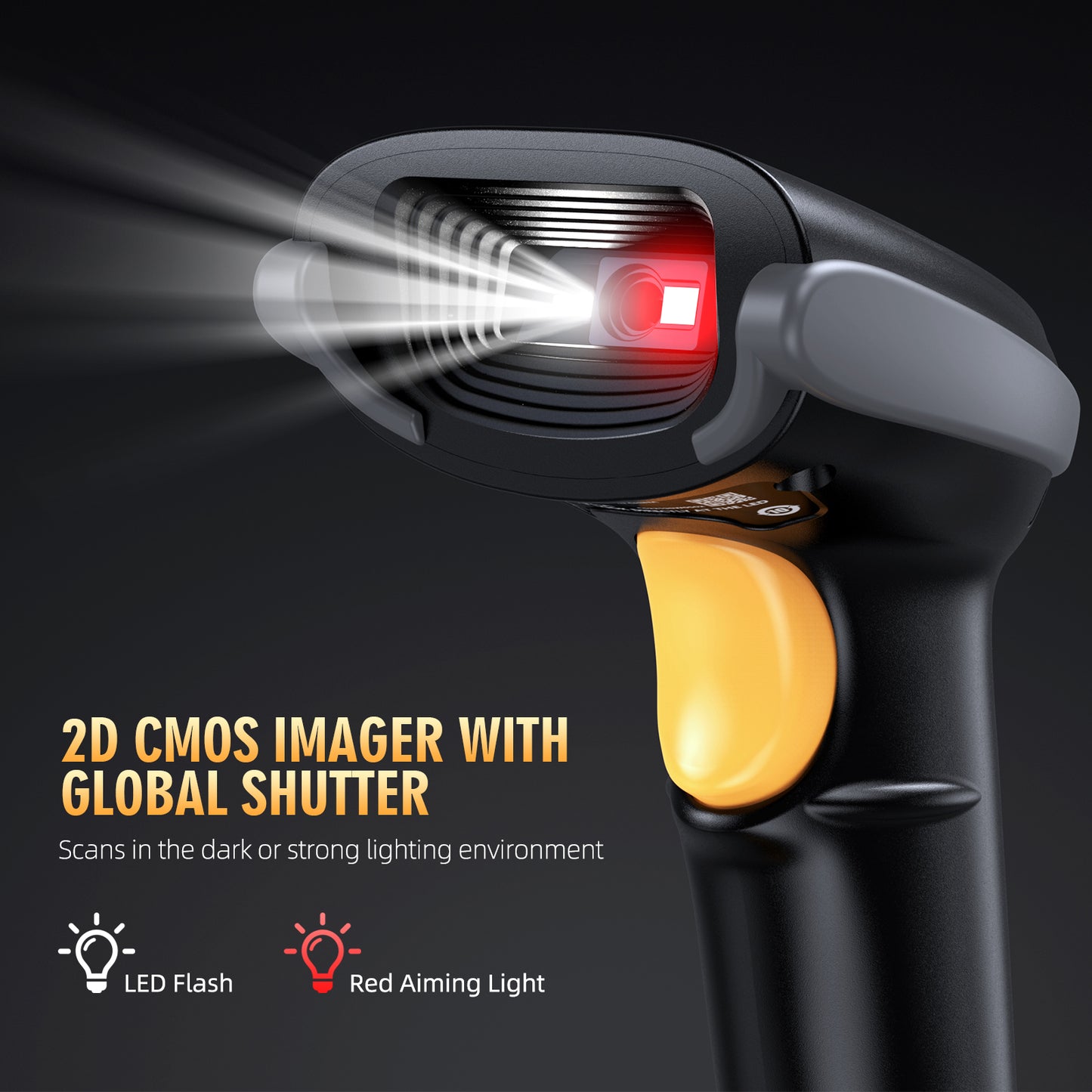

With the advanced CMOS technology, this T22 2D barcode scanner can accurate read blurring, incomplete and high capacity barcodes at a super fast speed in different environments.

You can use the scanner to read barcodes on silver foil paper or barcodes under plastic bag or any reflective barcodes.

GSI Datamatix barcode GTINs to Vaccine

This scanner supports GS1 Seperators in Data matrix Codes(GTIN), this is always needed in scanning medicine bottles or healthcare environment. Please kindly activate this feature before use.

This scanner can be used for Point-of-Sale, Loyalty Applications, Check-Ins, Shipping & Receiving, Product and Component Tracking, Lottery & Gaming etc,.

support 30 Languages

advanced data formatting

usb hide mode pos mode virtual serial mode

Scan the appropriate country code to program the keyboard layout for your country or language. As a general rule, the following charracters are supported, but need special care for countries other than the United States:


Our scanner supports the keyboard countries as follows:

United States, United Kingdom, Denmark, France, Finland, Turkey, Italy, Norway, Albania, Belgium, Bosnia, Brazil, Croatia, Czech, Dutch, Estonia, Germany, Greek, Hungary, Irish, Latvia, Lithuania, Macedonia, Spain, Poland, Portugal, Romania, Russia, Japan.


  • Add characters, digits before and after each scan.
  • Mute the scanner if your working environment is quite and you don't want to disturb others
  • You can apply Enter or tab command key as suffix after each scan.
  • Phrase or edit the output data
  • Replace non-printable characters in Datamatix with printable symbols
  • Output PDF417 driver license barcode into some single line or several lines or output part of information like name or birth date only
  • Sound Adjustment
  • LED illumination Change



  • USB HID Mode:No driver and no special software needed.
  • USB Virtual Serial Mode: The scanner needs to work with driver and serial software. USB Virtual COM Port Mode works on Window, Linux and Mac.
  • USB HID POS Mode: The scanner uploads data to POS tools.


If the scanner works under the last two modes, it will not upload data to notepad or word. You need to upload the data into your serial softwares.

usb wired qr barcode scanner usb wired presentation barcode scanner usb bluetooth barcode scanner long transfer range USB Automatic CCD Imager Barcode Scanner Wireless
Connection USB Wired USB Wired Bluetooth Bluetooth
Scanning Rate 60 Frames Per Second 120 Frames Per Second 120 Frames Per Second 700 Scans Per Second
Handsfree and Handheld Two Modes
1D or 2D scanner 1D&2D 1D&2D 1D&2D 1D
Support paper or screen barcodes Paper & Screen Paper & Screen Paper & Screen Paper & Screen
Transmission Distance --- --- 328 ft. (100 m) via bluetooth, 250m (820ft) via the usb cradle 328 ft. (100 m) via bluetooth, 250m (820ft) via the usb cradle
Handsfree switches to handheld automatically --- ---

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.

Enable normal OCR codes


Enable Long OCR codes

3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to activate the feature of automatic switching between handheld and handsfree mode.

Please scan this code below to set up.
