TEEMI Barcode Scanners

Wall Mountable USB Cradle Charging Base Station for TEEMI TMSL-56 TMSL-58 Barcode Scanner

Wall Mountable USB Cradle Charging Base Station for TEEMI TMSL-56 TMSL-58 Barcode Scanner

Regular price $29.99 USD
Regular price Sale price $29.99 USD
Save $-29.99 Sold out
  • When the TMSL-56 or TMSL-58 scanner is out of battery, you can put the scanner directly on the cradle to charge.
  • With the help of the cradle, the transfer distance can reach up to 250 meters max, almost twice longer than that via bluetooth connection.
  • When you activate the automatic scanning function of the TMSL-56 or TMSL-58 scanner, you can put the scanner in this cradle to make your hands free.
  • The USB cradle is wall mountable and has a page button at the bottom. If you cannot find the paired scanner, once you can press the page button, the scanner will beep.
View full details
  • Description
  • User Manual
  • Q&A

Product Description

wall mount 1d 2d bluetooth barcode scanner with usb cradle charge station

2D Bluetooth Barcode Scanner - Moving your barcodes beyond paper

This TMSL-56 scanner is using the latest bluetooth technology, and it is the updated version for TMSL-55. It works with Apple iOS, Android, Window PC and tablets. This cradle can work as a data receiver and charging base, it also can be mounted on the wall or stand on the table as you wish.


1. This scanner is not 100% compatible with square, vend, shopkeep software on iOS devices.

2. If you want to convert the usb cradle to COM port, you can purchase TEEMI serial cable for the USB cradle or activate virtual com port feature.

3. If you want this scanner to read DPM barcodes, please kindly confirm with us before placing the order. Codes, symbols, and text applied directly to a part’s surface (rather than affixed by a label or packaging) are known as Direct Part Marks (DPM). DPM are used widely in industrial part tracking from electronics manufacturing to automotive assembly.

4. This 2D scanner is not good at decoding 1D long barcode around over 10cm. It reads UPS, UPS tracking bills.

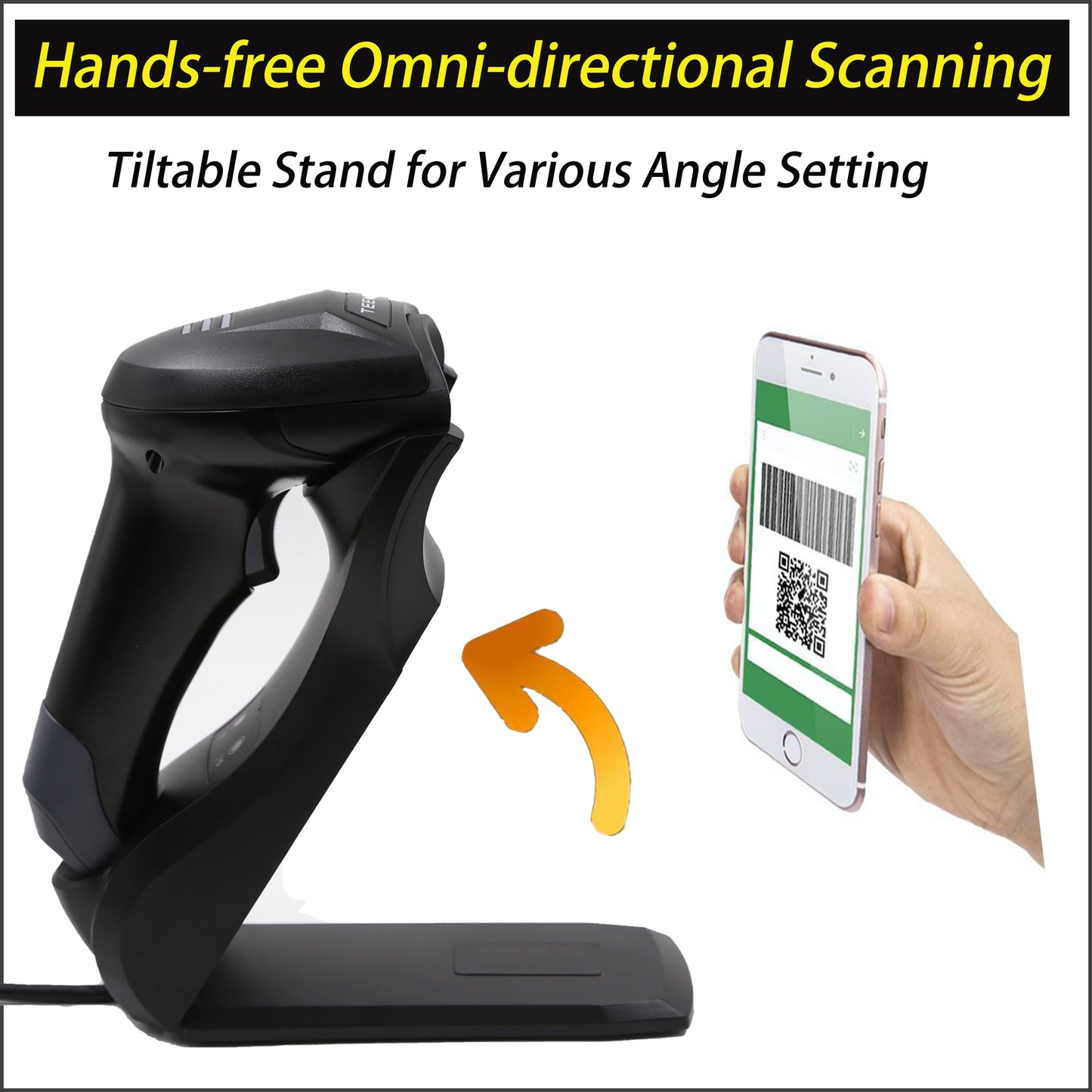

handsfree mode

No need to scan any configuration code to activate handsfree scanning mode, just put the scanner in the intelligent USB cradle to activate.

Bluetooth barcode scanner long range

Fast Precise Scan and Long Transfer Range

QR screen barcodes scanning

usb receiver and usb cradle included

scan 1D 2D barcodes under presentation mode

Symbology Decode Capability

This scanner can output the driver license data into one single line by factory default setting. If your software requires the data to be input into several columns, please kindly confirm with the seller first.

Easily pair with your smart device or the USB cradle or receiver

How to pair the scanner with your device


  1. Disconnect the USB cradle or receiver
  2. Scan one pairing barcode on the manual
  3. Turn on the blue-tooth of your device and then search our scanner to connect
  4. The scanner will beep when it connects with your device
  5. Open a notepad or your editable software, place the cursor in and then start to scan

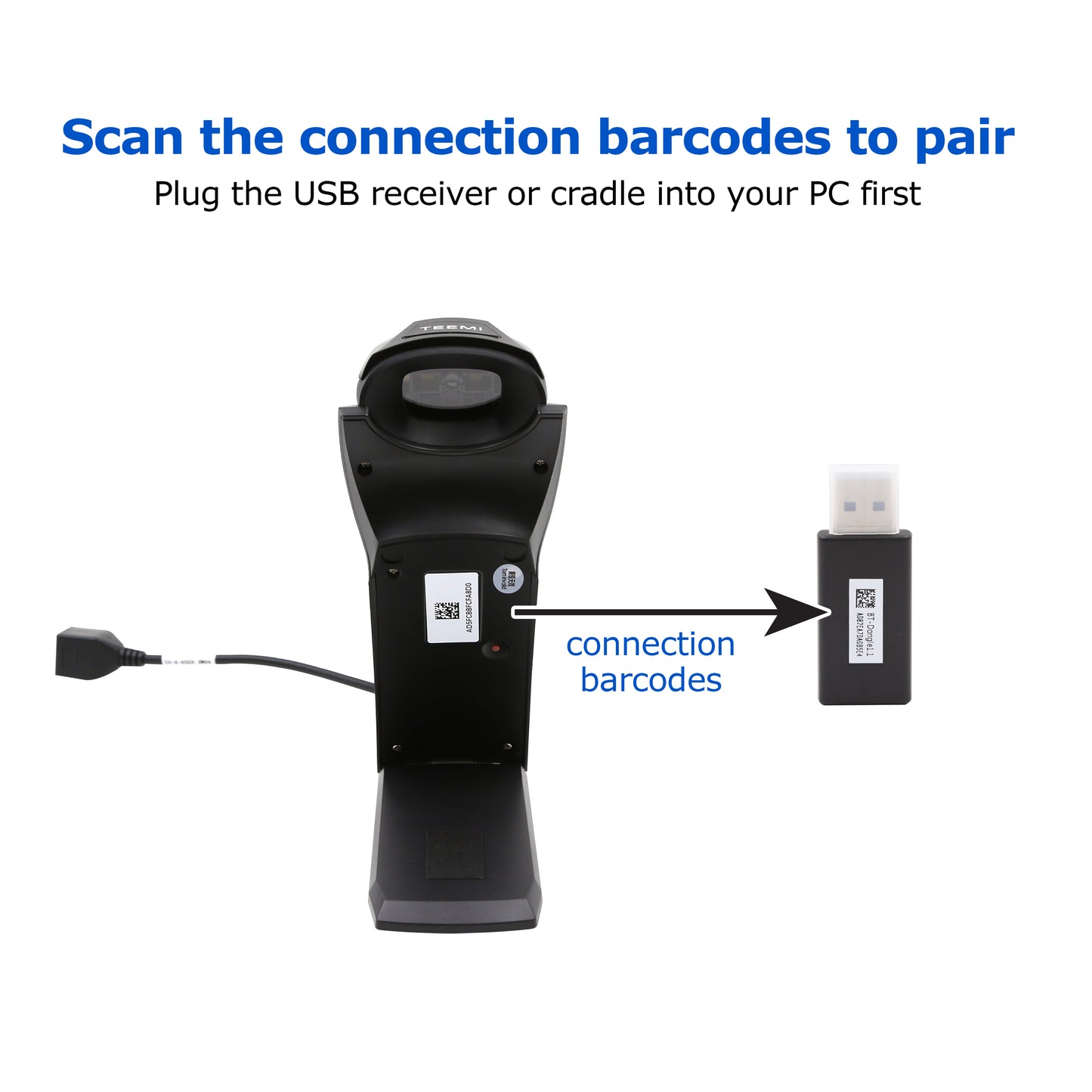

How to use the scanner with the USB cradle or receiver?

Scan the barcode on cradle or receiver, then plug the scanner into your PC, the scanner will send the data to your PC via cradle or receiver.

NOTE: The scanner can only be paired with one device one time. If you have several workstations to receive data, you can purchase several scanners.

Presentation Mode-scan without pressing the trigger

Presentation Mode uses ambient light and scanner illumination to detect bar codes. When in Presentation Mode, the LEDs remain dim until a bar code is presented to the scanner, then the aimer turns on and the LEDs turn up to read the code.



  • The LEDs are like a flash on a camera. The lower the ambient light in the room, the brighter the LEDs need to be so the scanner can “see” the bar codes.
  • With powerful strong LED light, you can use the scanner even in the dark.


Configurable and Durable

large capacity long working life

configurable add prefix and suffix sound adjustment

shockproof drop resistant

Rechargeable Lithium ion 2600mAh battery

With 2600mAh Capacity Battery, it can work 12 hours continuously after full charge. (Test the battery life with a machine, scanning rate one scan per second). If you only do hundreds scans per day, the scanner can work for half month. To charge the device, place it directly on the cradle or connect to any active USB port. The red LED will turn on during charging. The scanner can be fully charged in around 5 to 6 hours.

When the battery is low, you will hear three high beeps from the scanner.

Over 400 configuration options


  • Allow to add custom prefixes/ suffixes, delete characters for some or all symbologies.
  • Add keyboard keys/ combinations (terminator TAB, CR, F1 to F12 etc.)
  • Enable or disable the barcode type as you want.
  • Phrase the scanned data


This TMSL-56 is a BLE base device, it supports GATT(Generic Attribute Profile) mode and Second further development. With device UUID and service ID, your app can access the scanned data very easily.

Durable Design

The scanner will survive even if falls down from 5ft off the ground. If you are looking for a durable scanner with good battery endurance, this TMSL-56 would be a good choice.

3 bluetooth profiles

1d 2d qr pdf417 barcode scanner

pager button locate the scanner easily in a large work place

You can select the bluetooth profile mode accroding to your software requirement.


  • Bluetooth SPP(serial port profile):


The scanner can upload the data to your serial software under this mode.


  • Bluetooth GATT(Generic Attribute Profile)


The scanner can upload the data to your serial software under this mode. GATT Service UUID needs to be filled while in connection.


  • Bluetooth HID


The scanned barcode data will be uploaded to IOS, Android , windows or other devices in the form of bluetooth keyboard data.

1D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39,

Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc.

This 2D scanner is not good at decoding 1D long barcode around over 10cm. However It reads UPS, UPS tracking bills.

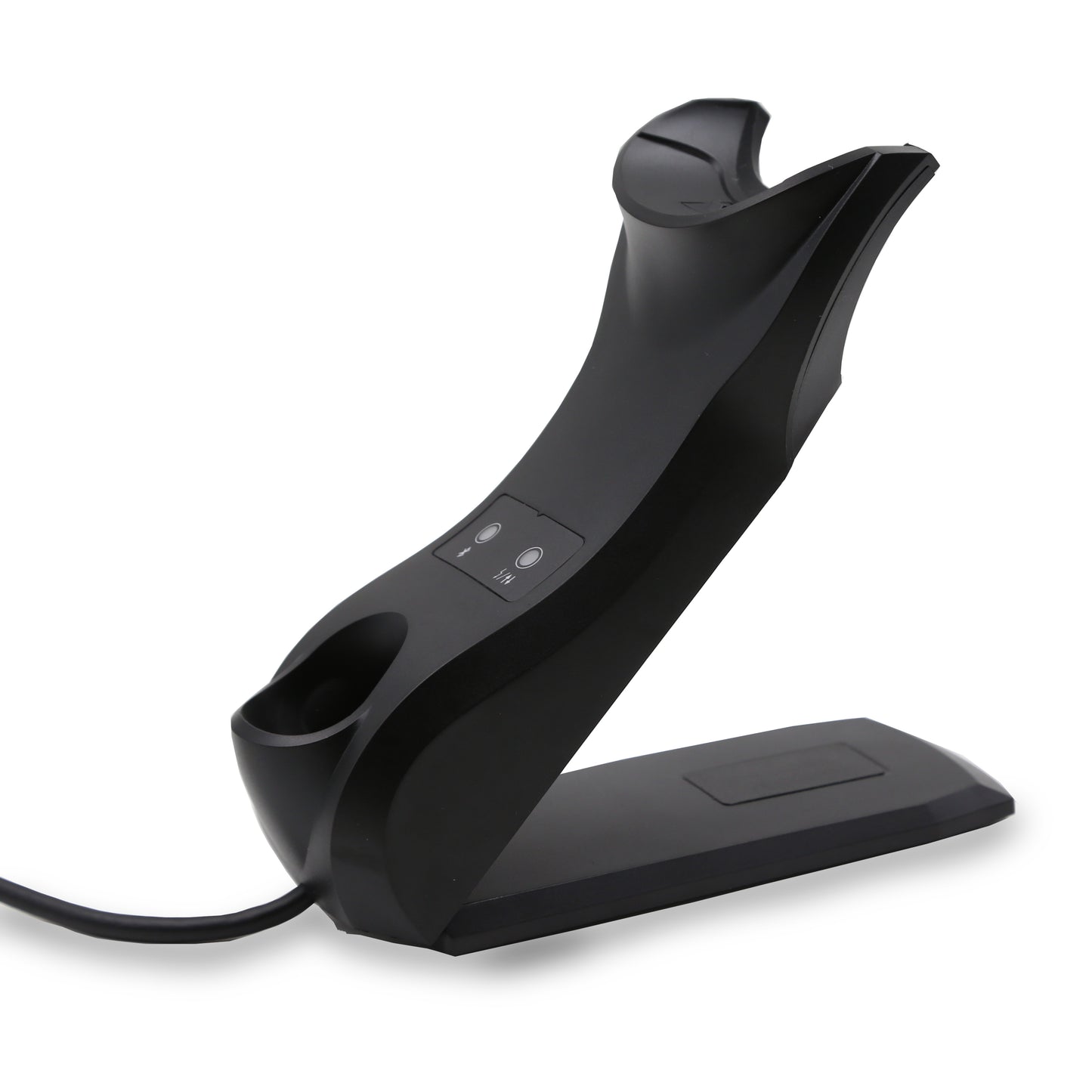

Heavy durable USB cradle weighs 0.6lb.

When you press the pager button at the back of the cradle, there are audible tones and hand pulsation, therefore you can easily find your scanner.

tiltable stable usb cradle for barcode scanners

1.If your TEEMI 2D scanner has difficulties to scan QR code with website address, how to do?

please kindly scan the configuration code below to activate this feature.

2.How to Activate OCR function of TEEMI 2D Scanners?

Please kindly scan the configuration code below to activate the OCR function. This code only works for TEEMI 2D Scanners.

3. How to activate the IMB code for TEEMI 2D Scanners?

Please kindly scan the programming barcode below to activate the IMB code.

4. How to program the scanner auto enter after each scan?

Please scan this code to set up.

5. How to turn off the sound of the scanner?

Please scan the codes below to set up.

6. How to activate the feature of automatic switching between handheld and handsfree mode.

Please scan this code below to set up.

7. How to check the percentage of battery left in your scanner?

Please scan this code to check.
